COG display: not only thin, but also low power consumption.
COG display is the first batch of Xinhongtai HOTLCD since its successful development and production in 2004. It has been the main product of the company for 15 years and is also a kind of LCD module favored by many customers.
So far, hundreds of standard COG displays ranging from 64*48 dot matrix to 320*240 dot matrix have been developed for customers to choose. In particular, there are more than one hundred different sizes of 128*64 dot matrix.
| Checklist | Model | Product type | Show contents | Product map |
Outline size (mm) |
Horizon (mm) |
Display size mm/inch |
Point spacing mm |
Visual angle | Brightness | Pin | Interface | Instructions | Working temperature | Voltage | Driver chip model |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3.1 inch 128x64 COG LCD | STN+ gray background blue text LCD display | 3.3V | Arduino HTG12864-125-11W-28C05-V02 | COG | 128x64 |
|
80x54x10.2 | 70.7x38.8 | 66.52x33.24 | 0.52x0.52 | 6H | 28PIN | MCU | Anti-static ESD 8KV | -30~80℃ | +3.3V | ST7565P | ||
| 3.1 inch 128x64 black background white text graphic COG LCD | DFSTN-LCD display | 3.3V | Arduino HTG12864-125-41W-28C05-V02 | COG | 128x64 |
|
80x54x10.2 | 80x54x10.2 | 66.52x33.24 | 0.52x0.52 | 6H | 28PIN | MCU | Anti-static ESD 8KV | -30~80℃ | +3.3V | ST7565P | ||
| 3.1 inch 128x64 white background gray text graphic COG LCD | FSTN+ display 3.3V HTG12864-125-31W-28C05-V02 | COG | 128x64 |
|
80x54x10.2 | 70.7x38.8 | 66.52x33.24 | 0.52x0.52 | 6H | 28PIN | MCU | 防靜電ESD 8KV | -30~80℃ | +3.3V | ST7565P | ||

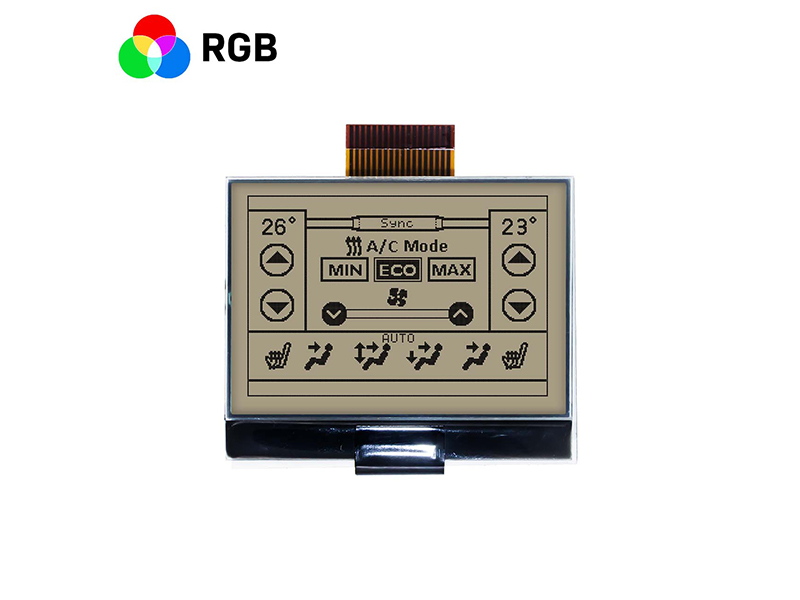

| 2.6 inch 240X160 graphic dot matrix COG LCD screen | FSTN + RGB backlight | MCU interface | Arduino HTG240160L-35S-18C10-V07 | COG | 240x160 |
|
60.0x49.5x5.6 | 56.0x38.7 | 51.94x34.62 | 0.216x0.216 | 6H | FPC-18PIN | MCU | Anti-static ESD 8KV | -20~70℃ | +3.3V | UC1698U | ||
| 2.6 inch 240X160 graphic dot matrix COG LCD screen | FSTN + RGB backlight | MCU interface | Arduino HTG240160L-35S-18C10-V07 | COG | 240x160 |
|
60.0x49.5x5.6 | 56.0x38.7 | 51.94x34.62 | 0.216x0.216 | 6H | FPC-18PIN | MCU | Anti-static ESD 8KV | -20~70℃ | +3.3V | UC1698U | ||

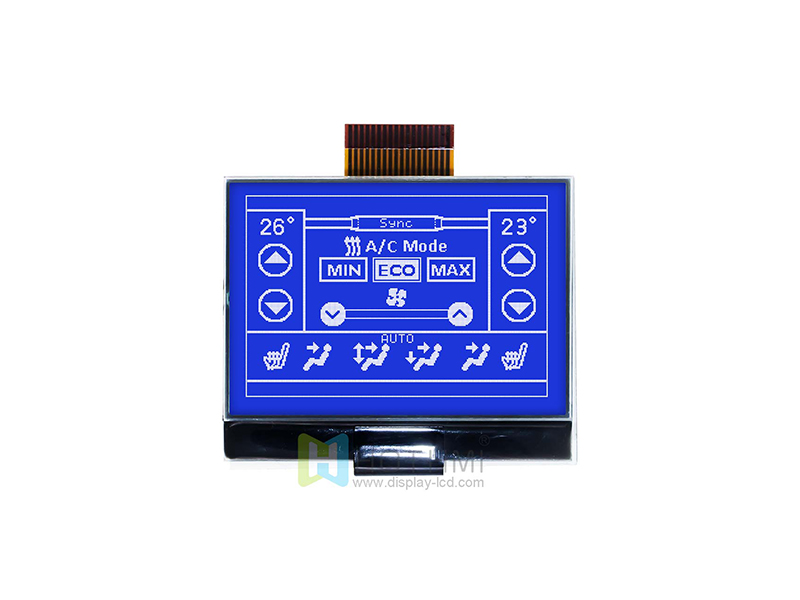

| 2.6-inch 240X160 Graphic Dot Matrix Blue Background White COG LCD/STN-LCD/MCU/Arduino HTG240160L-25W-18C10-V07 | COG | 240x160 |
|
60.0x49.5x5.6 | 56.0x38.7 | 51.94x34.62 | 0.216x0.216 | 6H | FPC-18PIN | MCU | Anti-static ESD 8KV | -20~70℃ | +3.3V | UC1698U | ||
| 2.6-inch 240X160 Graphic Dot Matrix Blue Background White Character COG LCD/STN-LCD/Arduino HTG240160L-25W-18C10-V07 | COG | 240x160 |
|
60.0x49.5x5.6 | 56.0x38.7 | 51.94x34.62 | 0.216x0.216 | 6H | FPC-18PIN | MCU | Anti-static ESD 8KV | -20~70℃ | +3.3V | UC1698U | ||

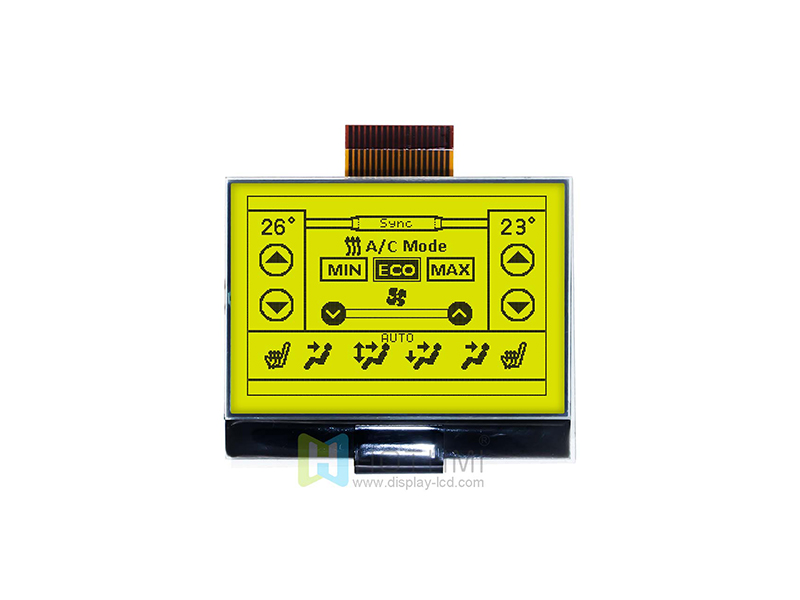

| 2.6" 240X160 Graphic Dot Matrix COG LCD Screen | STN+Yellow-Green LCD | SPI Interface | Arduino HTG240160L-11Y-18C10-V07 | COG | 240x160 |
|
60.0x49.5x5.6 | 56.0x38.7 | 51.94x34.62 | 0.216x0.216 | 6H | FPC-18PIN | SPI | Anti-static ESD 8KV | -20~70℃ | +3.3V | UC1698U | ||

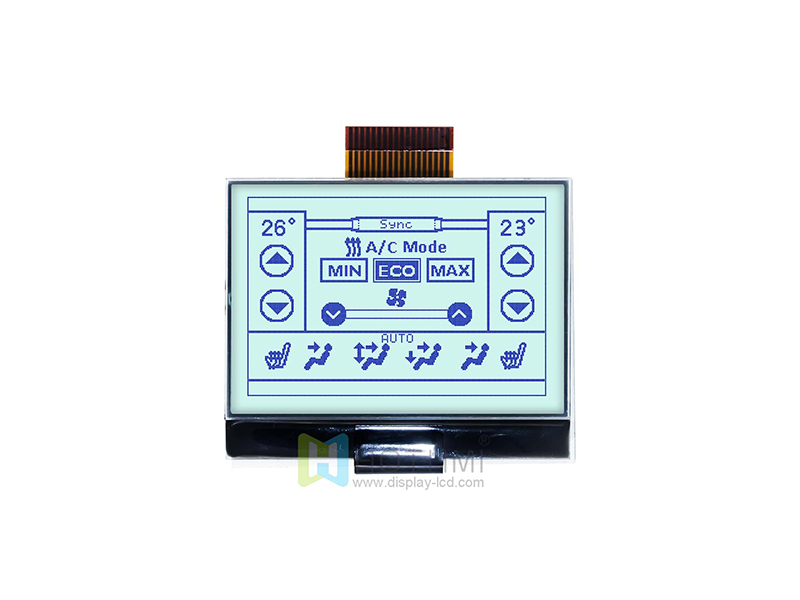

| 2.6 inch 240X160 Graphic Dot Matrix COG LCD Screen | STN+ LCD | SPI | Arduino HTG240160L-11W-18C10-V07 | COG | 240x160 |
|
60.0x49.5x5.6 | 56.0x38.7 | 51.94x34.62 | 0.216x0.216 | 6H | FPC-18PIN | SPI | Anti-static ESD 8KV | -20~70℃ | +3.3V | UC1698U | ||

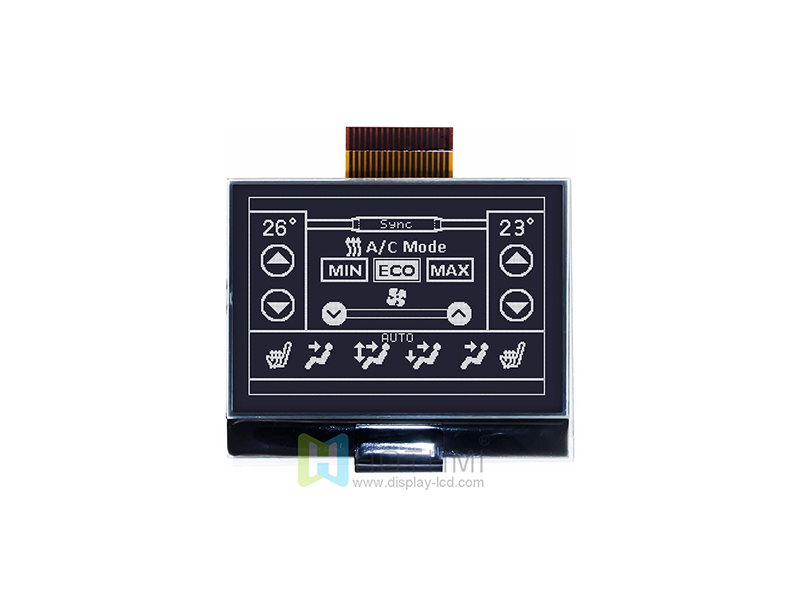

| 2.6" 240X160 Graphic COG LCD | DFSTN- Black Background White Text Display | SPI Interface | Arduino HTG240160L-41W-18C10-V07 | COG | 240x160 |
|
60.0x49.5x5.6 | 56.0x38.7 | 51.94x34.62 | 0.216x0.216 | 6H | FPC-18PIN | SPI | Anti-static ESD 8KV | -20~70℃ | +3.3V | UC1698U |
