COG display: not only thin, but also low power consumption.
COG display is the first batch of Xinhongtai HOTLCD since its successful development and production in 2004. It has been the main product of the company for 15 years and is also a kind of LCD module favored by many customers.
So far, hundreds of standard COG displays ranging from 64*48 dot matrix to 320*240 dot matrix have been developed for customers to choose. In particular, there are more than one hundred different sizes of 128*64 dot matrix.
| Checklist | Model | Product type | Show contents | Product map |
Outline size (mm) |
Horizon (mm) |
Display size mm/inch |
Point spacing mm |
Visual angle | Brightness | Pin | Interface | Instructions | Working temperature | Voltage | Driver chip model |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

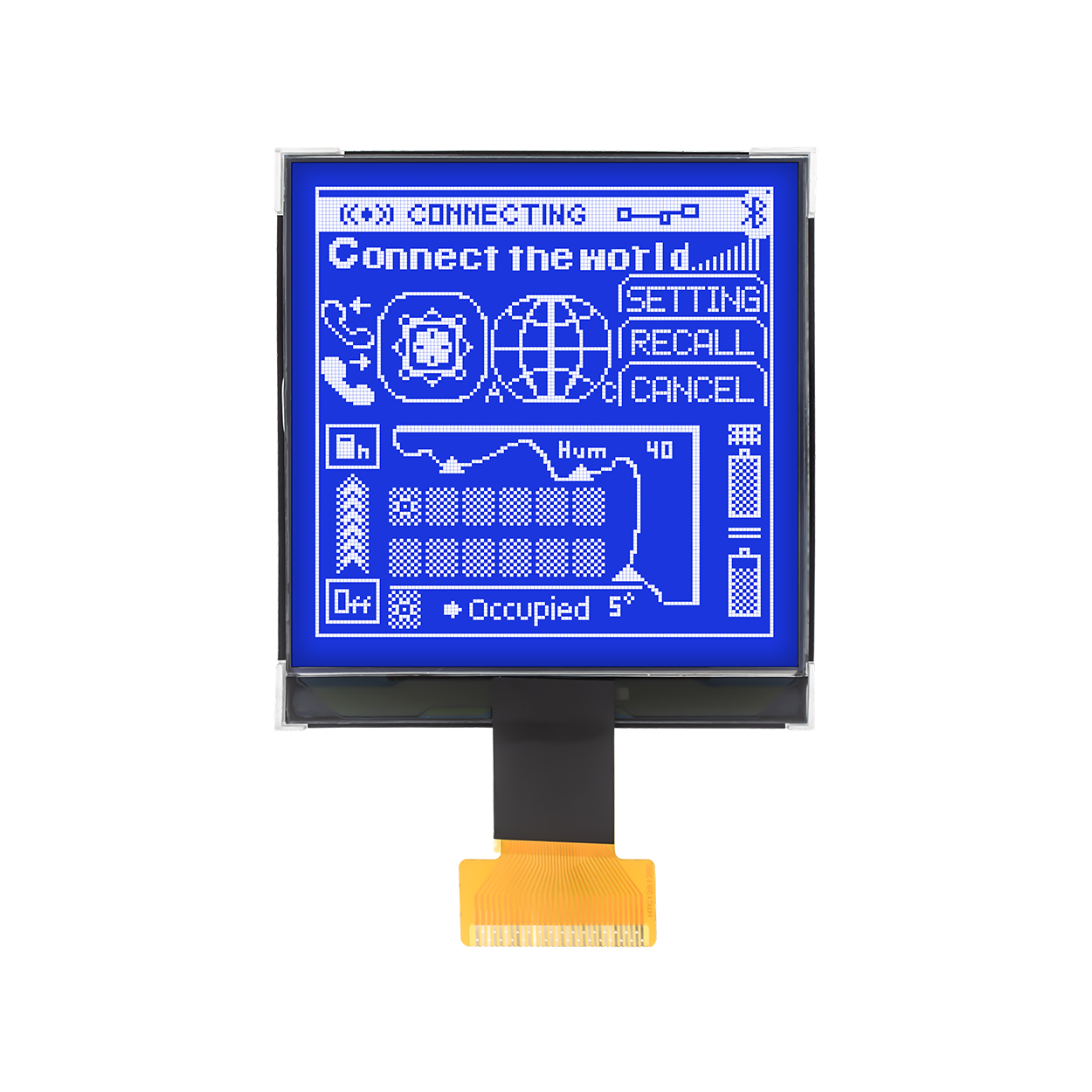

| 3.3-inch 128x128 Blue Background White Graphic LCD | STN-Fully Transparent Dot Matrix LCD | Arduino HTG128128E-25W-31H07-V01 | COG | 128x128 |
|
66x71.5x4.85 | 60.0x59.6 | 55.02x55.02 | 0.43x0.43 | 6H | white | FPC-31PIN | SPI | Anti-static ESD 8KV | -20~70℃ | +3.3V | SSD1848 | |

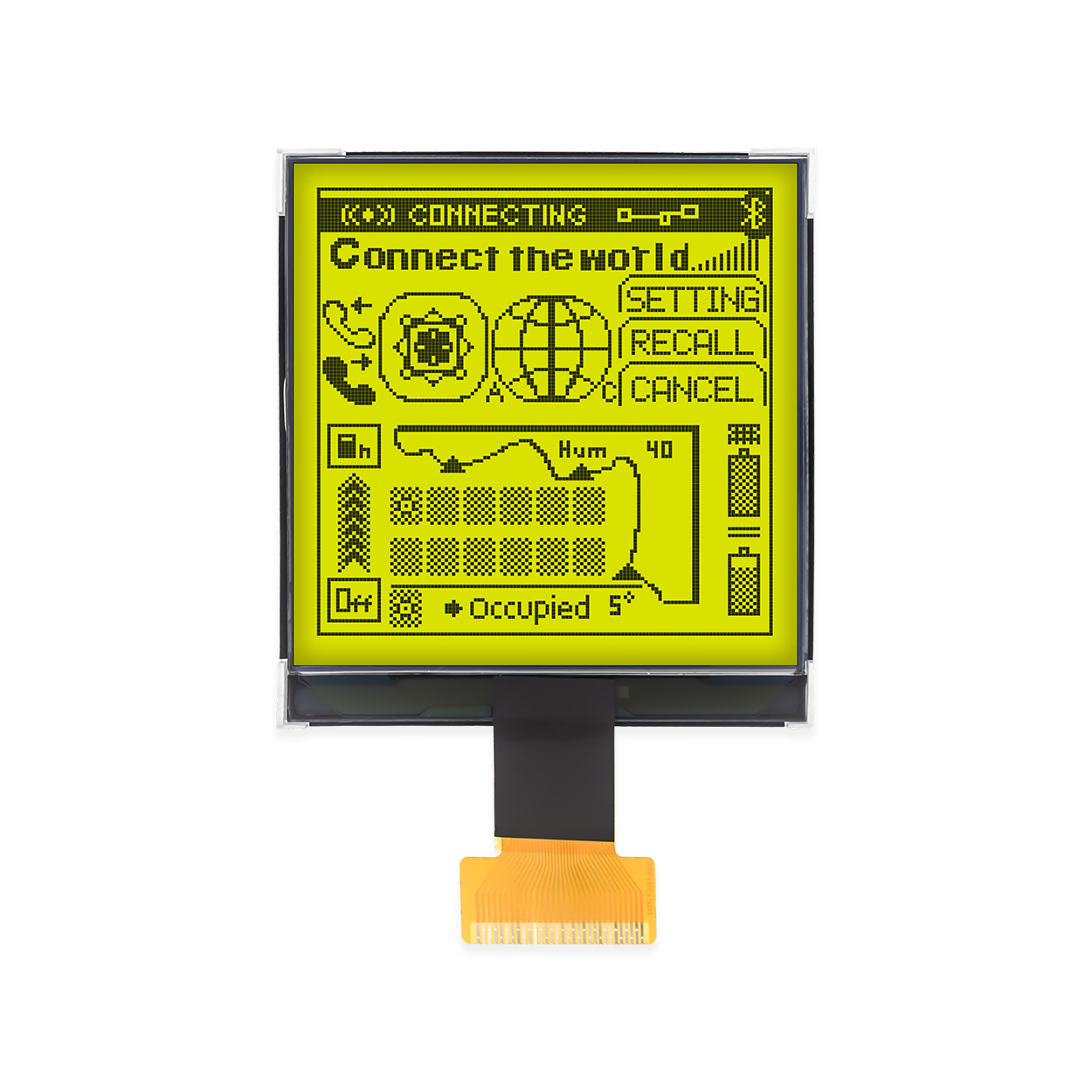

| 3.3-inch yellow-green 128x128 COG graphic LCD | STN+ dot matrix LCD | Arduino HTG128128E-11Y-31H07-V0 | COG | 128x128 |
|
66x71.5x4.85 | 60.0x59.6 | 55.02x55.02 | 0.43x0.43 | 6H | YG | FPC-31PIN | SPI | Anti-static ESD 8KV | -20~70℃ | +3.3V | SSD1848 | |

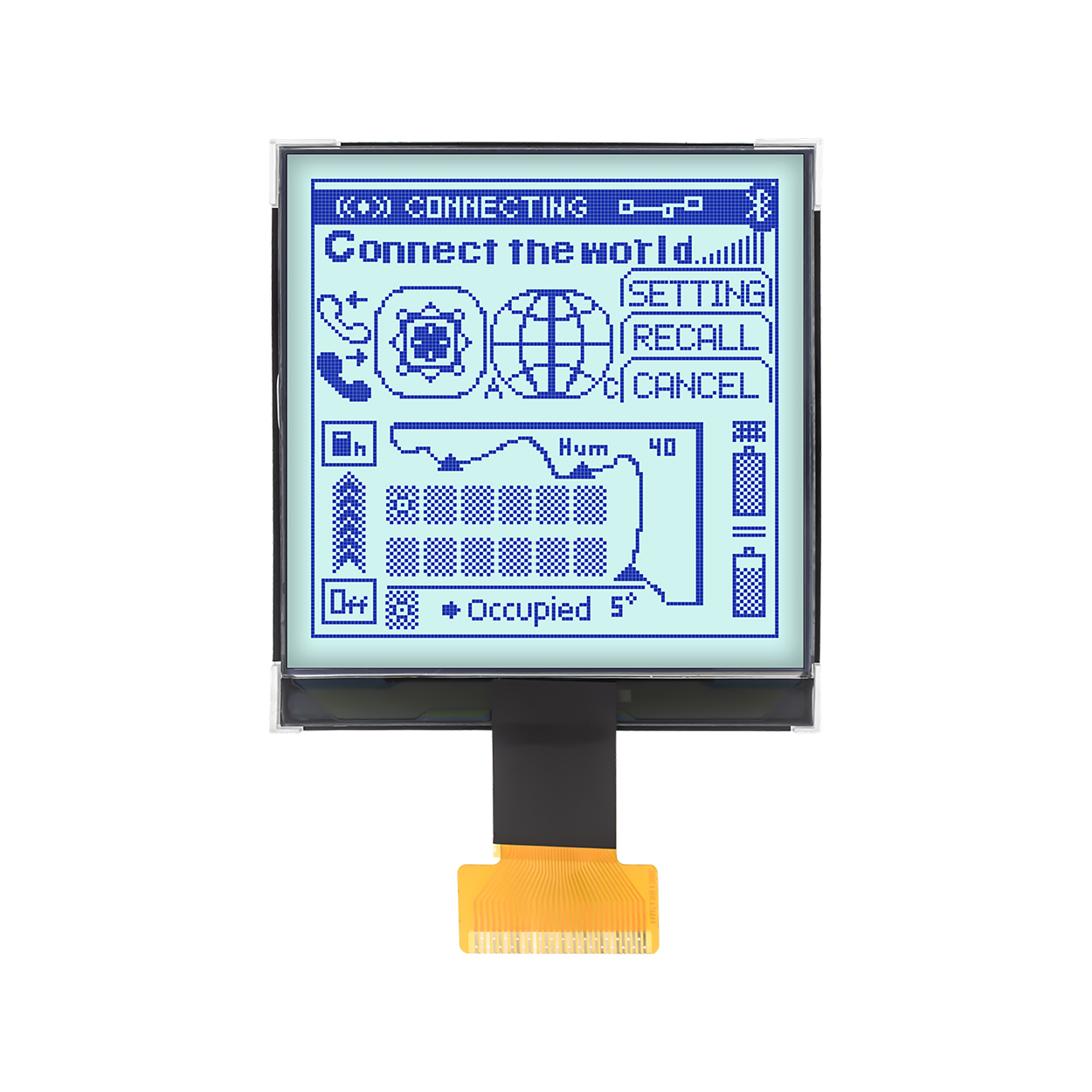

| 3.3-inch 128x128 COG Graphic LCD | STN+ Gray Background Blue Dot Matrix LCD | Arduino HTG128128E-11W-31H07-V01 | COG | 128x128 |
|
66x71.5x4.85 | 60.0x59.6 | 55.02x55.02 | 0.43x0.43 | 6H | white | FPC-31PIN | SPI | Anti-static ESD 8KV | -20~70℃ | +3.3V | SSD1848 | |
| 3.3 inch 128x128 graphic COG LCD display | DFSTN-white background black text dot matrix display | Arduino HTG128128E-41W-31H07-V01 | COG | 128x128 |
|
66x71.5x4.85 | 60.0x59.6 | 55.02x55.02 | 0.43x0.43 | 6H | white | FPC-31PIN | SPI | -20~70℃ | +3.3V | SSD1848 | ||

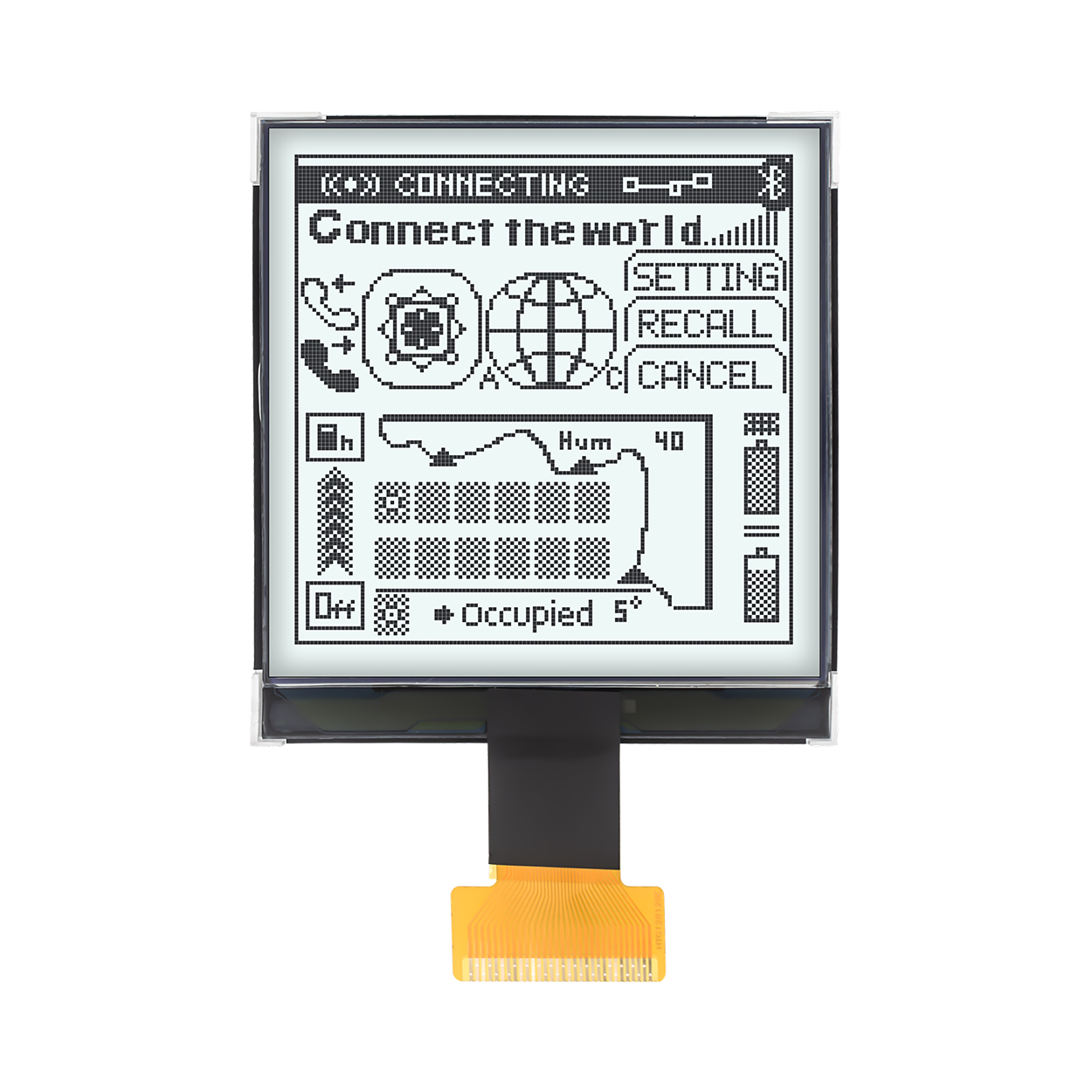

| 3.3-inch 128x128 graphic COG LCD display | FSTN+white background gray COG | Arduino HTG128128E-31W-31H07-V01 | COG | 128x128 |
|
66x71.5x4.85 | 60.0x59.6 | 55.02x55.02 | 0.43x0.43 | 6H | white | FPC-31PIN | SPI | Anti-static ESD 8KV | -20~70℃ | +3.3V | SSD1848 | |

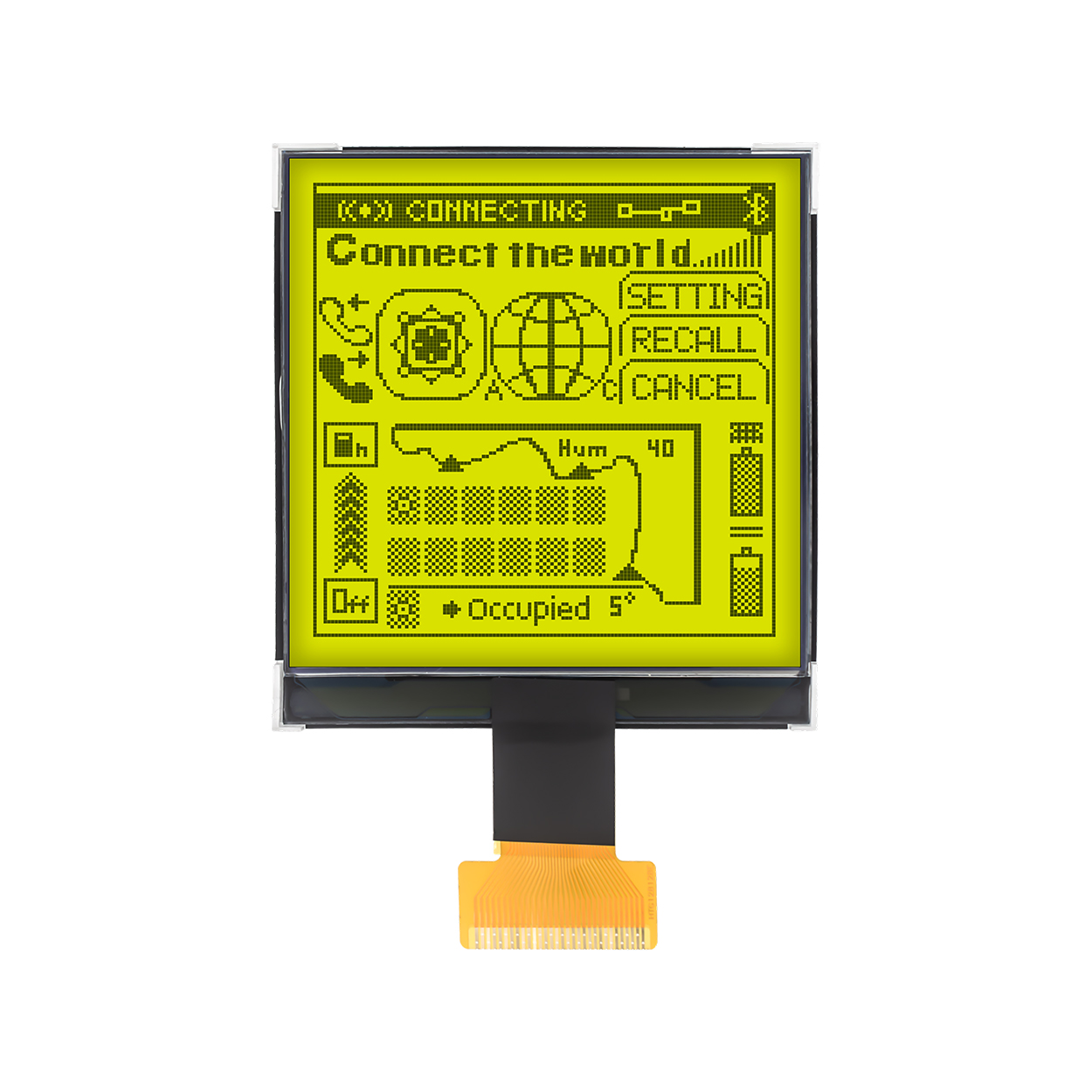

| 3.3-inch 128x128 square COG LCD display | STN+yellow green COG | Arduino HTG128128E-01Y-31H07-V01 | COG | 128x128 |
|
66x71.5x4.85 | 60.0x59.6 | 55.02x55.02 | 0.43x0.43 | 6H | YG | FPC-31PIN | SPI | Anti-static ESD 8KV | -20~70℃ | +3.3V | SSD1848 | |
| 3.1 inch 128x64 Graphic COG LCD | STN+ Display with Side Y/G Backlight 3.3V HTG12864-125-35S-28C05-V02 | Graphic LCD Module | 128x64 |
|
80x54x10.2 | 70.7x38.8 | 66.52x33.24 | 0.52x0.52 | 6H | 28PIN | MCU | Anti-static ESD 8KV | -30~80℃ | +3.3V | ST7565P | ||
| 3.1 inch 128x64 COG LCD | FSTN+ fully transparent red, green and blue LCD | 3.3V | Arduino HTG12864-125-35S-28C05-V02 | COG | 128x64 |
|
80x54x10.2 | 70.7x38.8 | 66.52x33.24 | 0.52x0.52 | 6H | 28PIN | MCU | 防靜電ESD 8KV | -30~80℃ | +3.3V | ST7565P | ||
| 3.1 inch 128x64 COG LCD | STN-Transmissive blue background white text LCD | 3.3V | Arduino HTG12864-125-25W-28C05-V02 | COG | 128x64 |
|
80x54x10.2 | 70.7x38.8 | |||||||||||
| 3.1 inch 128x64 COG LCD | STN+Gray background yellow-green side backlight LCD display | 3.3V | Arduino HTG12864-125-11Y-28C05-V02 | COG | 128x64 |
|
80x54x10.2 | 70.7x38.8 | 66.52x33.24 | 0.52x0.52 | 6H | 28PIN | MCU | Anti-static ESD 8KV | -30~80℃ | +3.3V | ST7565P |
