With the wide application of human-machine interface, the display content is gradually rich and colorful, and there are higher requirements for display definition, viewing angle range width and working temperature. The common TFT viewing angle range of 50° on the market and the operating temperature of -20 to +70 °C can no longer meet the needs of users. Therefore, Xin Hongtai Company has launched a series of wide-view TFT display screens, which can reach the viewing angle of 80° or more in both the up, down, left and right directions, and the HD perfect quality display with almost full viewing angle. Most wide viewing angle TFT displays The operating temperature is also increased to -30~+80°C.
| Checklist | Model | Product type | Show contents | Product map |
Outline size (mm) |
Horizon (mm) |
Display size mm/inch |
Effective size mm |
Visual angle | Brightness | Pin | Interface | Instructions | Working temperature | Voltage | Driver chip model |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 10.1-inch 1024x600 IPShigh brightness TFT/LVDS interface/with resistive touch TFT-H101A9WSIFTKR40 | TFT | 1024x600 |
|
235.00x143x6.9 | 10.1 | 10.1 | 222.72x125.28 | IPS | 1000cd/m2 | FPC-40 pin | LVDS | Anti-static ESD 8KV | -30~80℃ | +3.3 V | EK79001+EK73215(TFT) | |
| 15.6-inch TFT/1920x1080 HD Color Display/IPS TFT LCD/LVDS Interface/TBD Controller TFT-H156FHDIKN30-LVDS | TFT | 1920x1080 |
|
363.8x215.9x11.9 | 15.6 | 15.6 | 344.16x193.59 | IPS | 1000cd/M2 | FPC-30 pin | LVDS | Anti-static ESD 8KV | -30~85℃ | +3.3 V | TBD | |
| 11.6 inch TFT LCD display /1920x1080 HD color display /IPS TFT LCD/TBD controller TFT-H116D01FHIWZ3N30 | TFT | 1920x1080 |
|
263.34x157.16x2.71 | 11.6 | 11.6 | 256.32x144.18 | IPS | 350cd/M2 | FPC-30PIN | eDP | Anti-static ESD 8KV | -20~70℃ | +3.3 V | TBD<TFT> | |
| 8.9 inch TFT/800x1280 color screen/IPS TFT LCD/MIPI interface/JD9365D controller TFT-H089A1WXIFT5N40 | TFT | 800x1280 |
|
125.38*202.84*2.55 | 8.9 | 8.9 | 119.28*190.85 | IPS | 500cd/M2 | FPC-40pin | FPC-40pin | Anti-static ESD 8KV | -20~70℃ | +3.3 V | JD9365D | |
| 8.0-inch IPS full-view color screen/800x1280 resolution/capacitive screen/controller JD9635/MIPI interface/Android/TFT-H080A11HDIFT4C30 | TFT LCD | 800x1280 |
|
124.6x194.1x4.7 | 8.0 | 8.0 | 107.64x172.224 | IPS | 450cd/m2 | FPC-30PIN | MIPI 4L | Anti-static ESD 8KV | -20~70℃ | 3.3V | JD9635 | |
| Full-view IPS/8.0-inch vertical HD color LCD display module/MIPI interface TFT-H080A11HDIFT5N30 | TFT | 800x1280 |
|
114.7x184.2x2.65 | 8.0 | 8.0 | 107.64x172.224 | IPS(U85/D85/R85/L85) | 500cd/m2 | FPC-30PIN | MIPI | Anti-static ESD 8KV | -20~70℃ | 3.3V | JD9635 | |
| 7.0 inch 280x1424 bar color screen/IPS wide viewing angle/MIPI interface TFT-H070A21ZBINV6N40 | TFT | 280x1424 |
|
182.47*38.2*3.45 | 7.0 | 7.0 | 170.88*33.60 | IPS | 650cd/m2 | FPC-40pin | MIPI | Anti-static ESD 8KV | -30~80℃ | +3.3 V | ST7703 | |
| 3.5 inch TFT LCD/240x320 dot color screen/IPS/TFT/LCD/ST7272A controller TFT-H035A1QVIST5N54 | TFT Display | 240x320 |
|
76.84X63.84X4.65 | 3.5 | 3.5 | 70.08X52.560 | IPS | 500cd/M2 | FPC-54pin | RGB | Anti-static ESD 8KV | -30~85℃ | +2.8 V | ST7272A | |
| 3.5 inch TFT LCD /240x320 resolution capacitive touch display/ST7272A TFT-H035A1QVIST6C54 | TFT | 240x320 |
|
76.84X63.84X4.65 | 3.5 | 3.5 | 70.08X52.560 | IPS | 600cd/M2 | 54pin | RGB | Anti-static ESD 8KV | -30~85℃ | +2.8 V | ST7272A | |

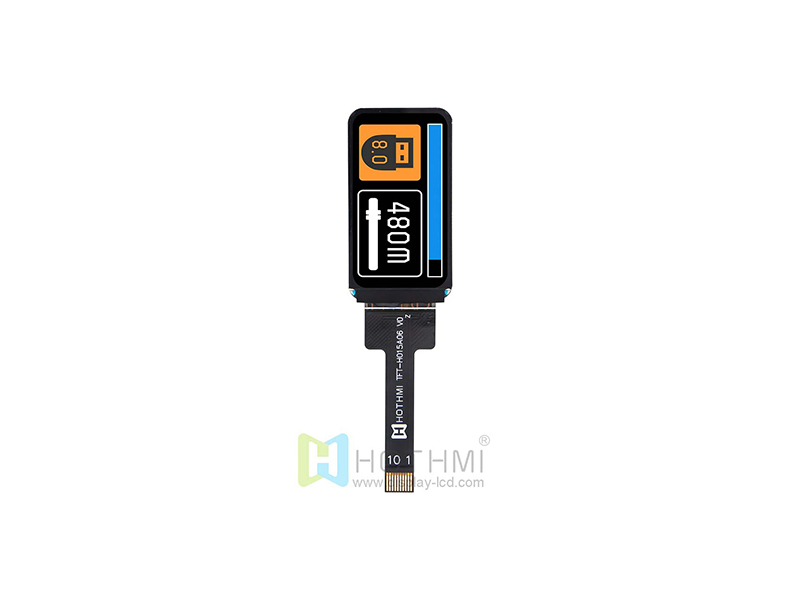

| 1.5 inch 172x320 mini color display/IPS viewing angle/MCU8080/ST7778 TFT-H015A06QVIST3N10 | TFT | 172x320 |
|
19.65x36.76X1.6 | 1.5 | 1.5 | 17.65X32.83 | IPS | 300cd/M2 | 10 PIN | SPI | Anti-static ESD 8KV | -20~70℃ | +3.3 V | ST7778 |
