With the wide application of human-machine interface, the display content is gradually rich and colorful, and there are higher requirements for display definition, viewing angle range width and working temperature. The common TFT viewing angle range of 50° on the market and the operating temperature of -20 to +70 °C can no longer meet the needs of users. Therefore, Xin Hongtai Company has launched a series of wide-view TFT display screens, which can reach the viewing angle of 80° or more in both the up, down, left and right directions, and the HD perfect quality display with almost full viewing angle. Most wide viewing angle TFT displays The operating temperature is also increased to -30~+80°C.
| Checklist | Model | Product type | Show contents | Product map |
Outline size (mm) |
Horizon (mm) |
Display size mm/inch |
Effective size mm |
Visual angle | Brightness | Pin | Interface | Instructions | Working temperature | Voltage | Driver chip model |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

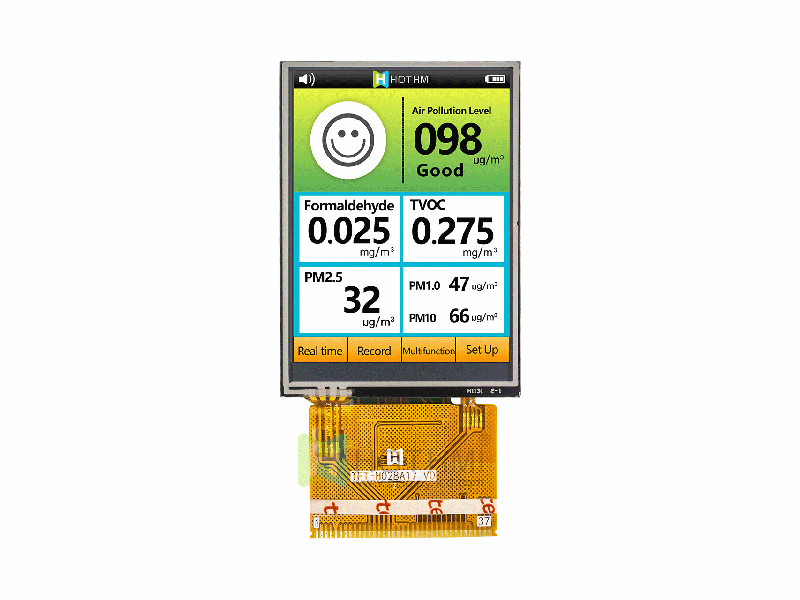

| 2.8-inch 240x320 TFT color display / industrial-grade TFT LCD / MCU interface / ST7789 controller / plug-in FPC TFT-H028A17QVTST2N37 | TFT standard display | 240x320 |
|
50.0x69.2x2.3 | 2.8 | 2.8 | 43.2x57.6 | 12:00 | 250cd/m2 | FPC-37 pin | MCU | Anti-static ESD 8KV | -20~70℃ | +3.3 V | ST7789 | |

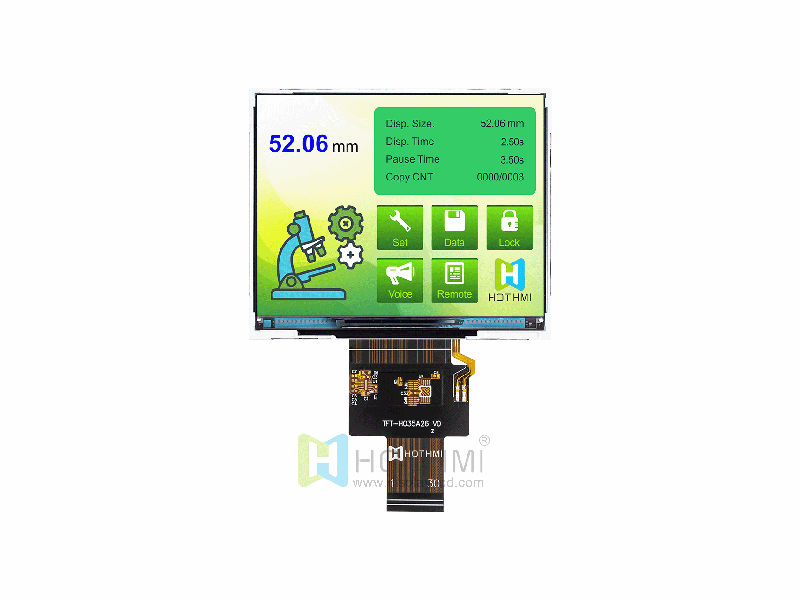

| 3.5-inch 640x480TFT IPS color display/ plug-in LVDS FPC TFT-H035A26VGIST4N30 | IPS full-view TFT display | 640x480 |
|
76.9X63.9X3.1 | 3.5 | 3.5 | 70.08X52.56 | IPS | -30~80℃ | FPC-30 pin | LVDS | Anti-static ESD 8KV | -30~80℃ | +3.3 V | T.B.D | |
| 5.0-inch 800x480 capacitive touch IPS TFT/high brightness capacitive TFT/sunlight viewable TFT-H050C09SVISTKC40 | IPS full-viewing angle TFT display | 800x480 |
|
120.7X75.8X4.85 | 5.0 | 5.0 | 108X64.8 | IPS | 1000cd/M2 | FPC-40 pin | RGB | Anti-static ESD 8KV | -30~80℃ | +3.3 V | ST7262(TFT),Atmel mXT640T(CTP) | |
| 7.8-inch 400x1280 PS TFT LCD / ultra-high brightness wide-angle TFT LCD / sunlight visible TFT-H078A02ZAINVTN40 | IPS full-viewing angle TFT display | 400x1280 |
|
208.78X67.8X4.7 | 7.8 | 7.8 | 190.08X59.4 | IPS | 2000cd/m2 | FPC-40 pin | SPI | Anti-static ESD 8KV | -20~70℃ | +3.3 V | NV3051 | |
| 8.0-inch 800x1280 color display panel/IPS TFT LCD/NV3051F1 controller TFT-H080B7HDINV6N30 | IPS full-view TFT display | 800x1280 |
|
114.7x184.2x2.65 | 8.0 | 8.0 | 107.64x172.224 | IPS | 600cd/m2 | FPC-30 pin | MIPI | Anti-static ESD 8KV | -20~70℃ | 2.8V | NV3051F1 | |
| 2.4-inch 240x320 resolution / 2.4-inch TFT LCD / 4-wire SPI interface / ST7789 controller TFT-H024B23QVIST4N12 | TFT | 240x320 |
|
42.72x58.56 | 2.4 | 2.4 | 36.72x48.96 | IPS | 400cd/m2 | FPC-12PIN | SPI | Anti-static ESD 8KV | -30~80℃ | +3.3 V | ST7789<TFT> | |
| 5.5-inch color display/IPS full viewing angle/high brightness capacitive touch TFT TFT-H055A61HDINVKC30 | TFT | 720x1280 |
|
76.0x140x0.7 | 5.5 | 5.5 | 68.04x120.96 | IPS | 1000cd/m2 | FPC-50pin | MIPI | 防靜電ESD 8KV | -20~70℃ | +3.3 V | NV3051F<TFT>,GT911<CTP> | |
| 5.5-inch IPS full-view TFT/720X1280 resolution color display/NV3051 controller/high brightness TFT TFT-H055A61HDINVKN40 | TFT | 720x1280 |
|
70.6x128.25 | 5.5 | 5.5 | 68.04x120.96 | IPS | 1000cd/m2 | FPC-50pin | MIPI | Anti-static ESD 8KV | -20~70℃ | 5.0V | NV3051F<TFT>,GT911<CTP> | |
| 10.1 inch IPS full viewing angle/1024x600 resolution capacitive touch screen/LVDS interface TFT-H101A9WSIFTKC40 | TFT | 1024x600 |
|
235.00x143x6.9 | 10.1 | 10.1 | 222.72x125.28 | IPS | 1000cd/m2 | FPC-40pin | LVDS | Anti-static ESD 8KV | -30~80℃ | +3.3 V | EK79001+EK73215(TFT) | |
| 10.1-inch TFT LCD/1024x600 dot matrix/IPS full viewing angle/10.1-inch high brightness TFT/LVDS interface TFT-H101A9WSIFTKN40 | TFT | 1024x600 |
|
235.00x143x6.9 | 10.1 | 10.1 | 222.72x125.28 | IPS | 1000cd/m2 | FPC-40 pin | LVDS | Anti-static ESD 8KV | -30~80℃ | +3.3 V | EK79001+EK73215(TFT) |
