Location:Home  >  Product center  >  TFT LCD Modules(with board)  >  TFT Modules | HI | VGA | LVDS | MIPI | WIth Board  >  10.1寸高亮度彩色液晶顯示屏/IPS全視角/1280x800點陣/電容觸摸屏/TFT-H101D13WXIWZKC40
  • Model : 10.1 inch high-brightness color LCD display/IPS full viewing angle/1280x800 dot matrix/capacitive touch screen/TFT-H101D13WXIWZKC40

    Product type:TFT LCD

    Show contents:1280x800

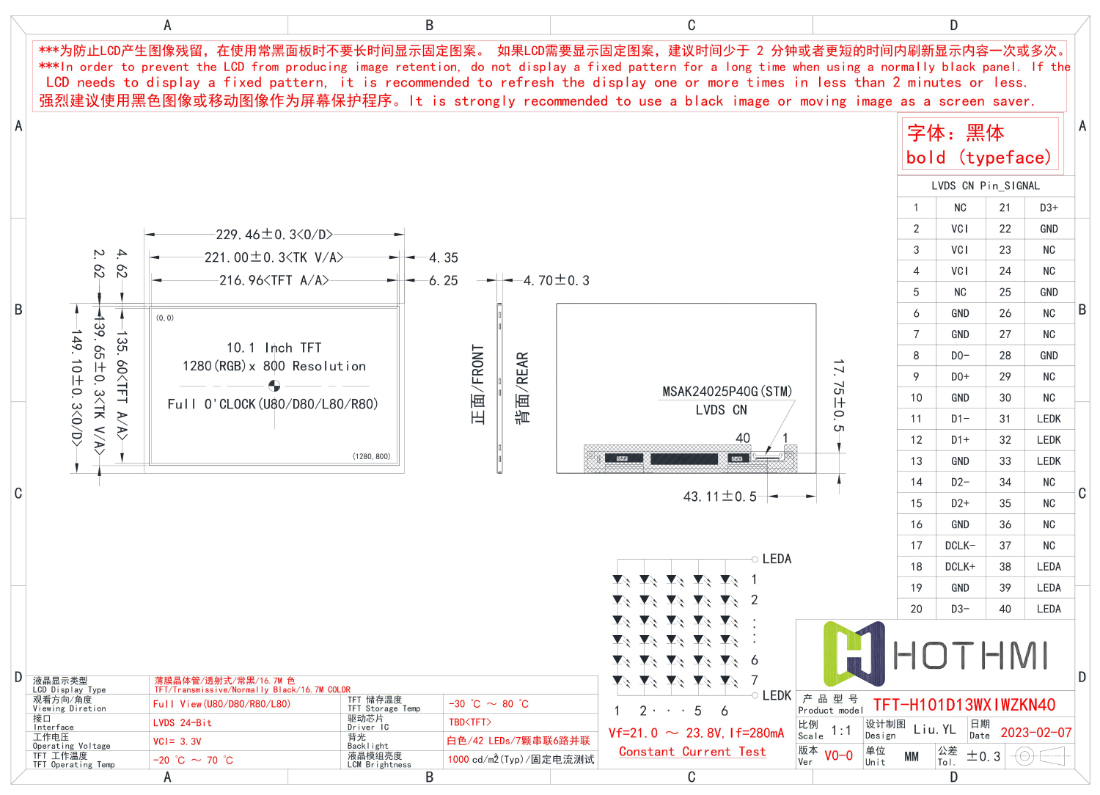

    Outline size(mm) :229.46x149.1

    Size of View Window(mm):10.1

    Display size(mm) :10.1

    Effective size(mm):216.96x135.6

    Product application:Vehicle, medical, industrial control

    Visual angle:Full view

    Backlight type or brightness:800cd/m2

    Connection PIN Number:40pin

    Interface mode:LVDS

    Special instructions:Anti-static ESD 8KV

    Working temperature:-20~70℃

    Power supply voltage:3.3V

    Driver chip model:T.B.D

    PDF download
Product description

TFT-H101D13WXIWZKC40 | 10.1" IPS LCD | 1280x800 Pixel Screen | EMI Shielding | LVDS Connector | 40-Pin FFC Connection | High Brightness Visible Under Sunlight | IPS Full Viewing Angle | With Capacitive Touch Screen

TFT-H101D13WXIWZKC40 Is An Excellent 10.1-Inch LCD Display That Integrates Advanced Technology To Meet The Needs Of Many Fields. Using IPS Technology And 1280x800 Pixel Resolution, The Display Provides Clear, High-Quality Images And Effectively Reduces Electromagnetic Radiation Through EMI Shielding Technology To Ensure The Stability Of The Display Effect.

In Terms Of Connectivity, The LVDS Connector And 40-Pin FFC Connection Provide Flexibility, Making It Suitable For A Variety Of Application Scenarios. Designed With Outdoor Use In Mind, The High Brightness Ensures It Remains Clearly Visible In Strong Sunlight. IPS Full Viewing Angle Technology Allows Viewers To Enjoy Consistent Images From Almost Any Angle.

The Built-In Driver IC And Optimized Drivers Further Improve Performance And Reliability, Ensuring The Monitor Runs Smoothly And Accurately Presents Images And Graphics. Complying With RoHS Standards Indicates That The Product Pays Attention To Environmental Protection And Safety Standards And Pursues Sustainable Development.

TFT-H101D13WXIWZKC40 Is Widely Used In Medical Equipment Fields, Such As Monitors And Oxygen Machines, As Well As Industrial Control Systems. It Is Particularly Worth Mentioning That It Has A Capacitive Touch Screen Function, Which Further Expands The Application Field And Provides Users With More Flexible Interaction Options. Overall, This Display Is A Reliable, High-Performance Display Solution In The Industrial And Medical Fields With Its Superior Technology And Wide Applicability.
