Location:Home  >  Product center  >  TFT display screen  >  Wide View TFT Display Screen  >  1.77寸超高亮TFT/128*160分辨率/戶外手持設備/TFT-H017A3CFTST5N10

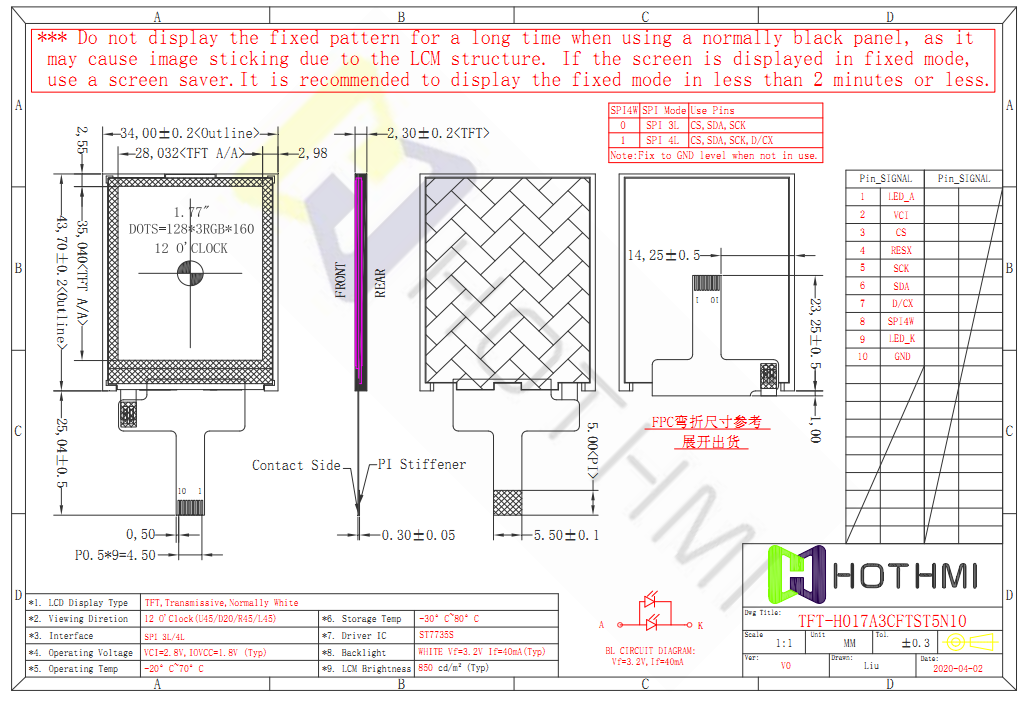

  • Model : 1.77 inch super bright TFT/128*160 resolution/outdoor handheld device/TFT-H017A3CFTST5N10

    Product type:TFT

    Show contents:128x160

    Outline size(mm) :34.0x43.7x2.3

    Size of View Window(mm):1.77

    Display size(mm) :1.77

    Effective size(mm):28.032x35.040

    Product application:戶外設備,手持設備

    Visual angle:12H

    Backlight type or brightness:850cd/m2

    Connection PIN Number:FPC-10PIN

    Interface mode:SPI

    Special instructions:Anti-static ESD 8KV

    Working temperature:-20~70℃

    Power supply voltage:2.8v

    Driver chip model:ST7735S

Product description

1.8-inch (1.77 ") TFT LCD (tft-h017a3cftst5n10) is a 1.8-inch (1.77-inch) TFT color LCD module with 128x160 resolution, which is carefully designed by HOTDISPLAY,

65K / 262K true color, built-in st7735s controller, high picture quality, wide viewing angle, support 3-wire SPI, 4-wire SPI serial interface, infinite peripheral circuit, only 10pinfpc connection (optional connector), 2.8V voltage, support horizontal or vertical display. All materials meet the ROHS standard of environmental protection requirements. This module can be equipped with touch screen, which is widely used in various instruments, intelligent equipment, analytical instruments, hand-held instruments, driving recorder, etc. it is suitable for a variety of single-chip development platforms, such as 8051, PIC, AVR, Arduino, arm and Raspberry PI.
