Product type：TFT LCD
Show contents：800x480
Outline size(mm) ：105.5x67.2x4.55
Size of View Window(mm)：4.3
Display size(mm) ：4.3
Effective size(mm)：95.04x53.85
Product application：Vehicle, medical, industrial control
Visual angle：Full view
Backlight type or brightness：1000cd/m2
Connection PIN Number：FPC
Interface mode：RGB
Special instructions：TTL18bit/24bit
Working temperature：-30~80℃
Power supply voltage：3.3v
Driver chip model：ST7262

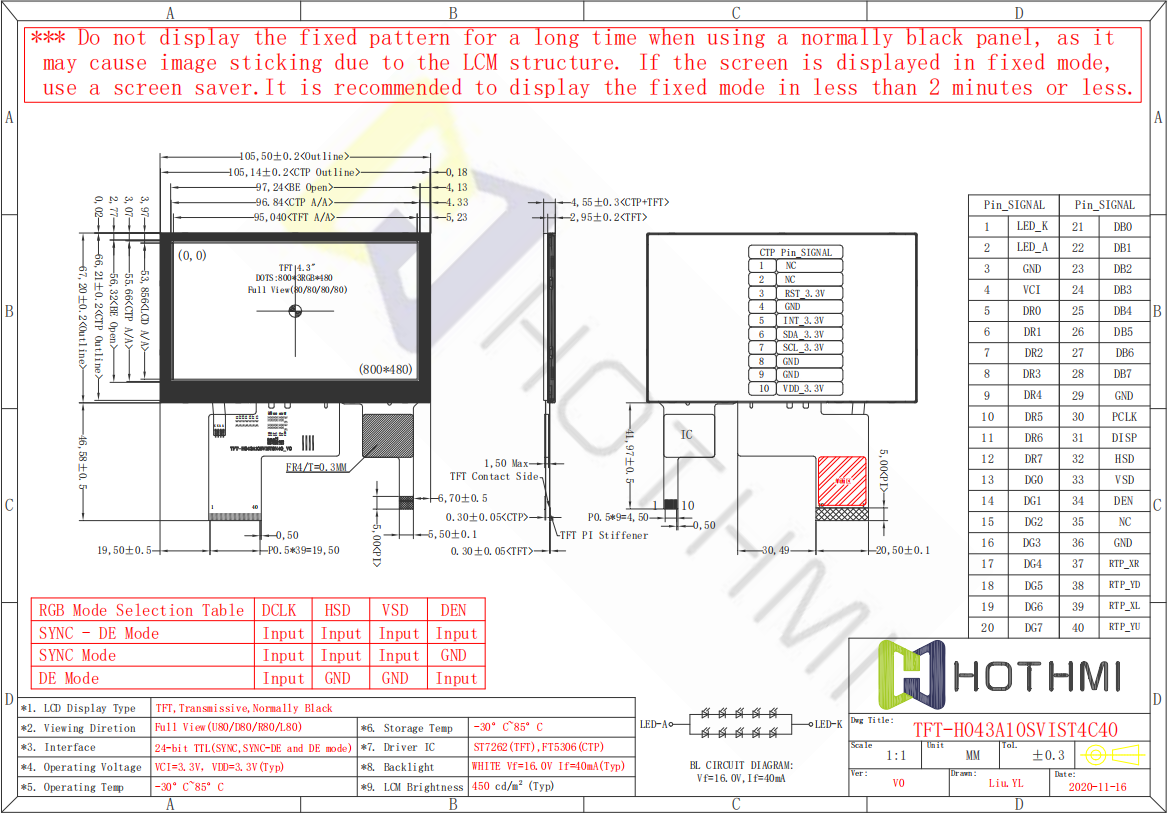

4.3 inch TFT horizontal screen | 800*480 resolution | IPS full viewing angle | Capacitive touch screen | TFT-H043A10SVIST5C40
