Product type：TFT Display
Show contents：1024x600
Outline size(mm) ：186.7x111.15x5.5
Size of View Window(mm)：7.0
Display size(mm) ：7.0
Effective size(mm)：154.21x85.92
Product application：handheld devices, small speakers, small home appliances ? Viewing angle: IPS full viewing angle
Visual angle：IPS
Backlight type or brightness：950cd/m2
Connection PIN Number：FPC-50 pin
Interface mode：RGB
Special instructions：Anti-static ESD 8KV
Working temperature：-20~70℃
Power supply voltage：+3.3V
Driver chip model：T.B.D

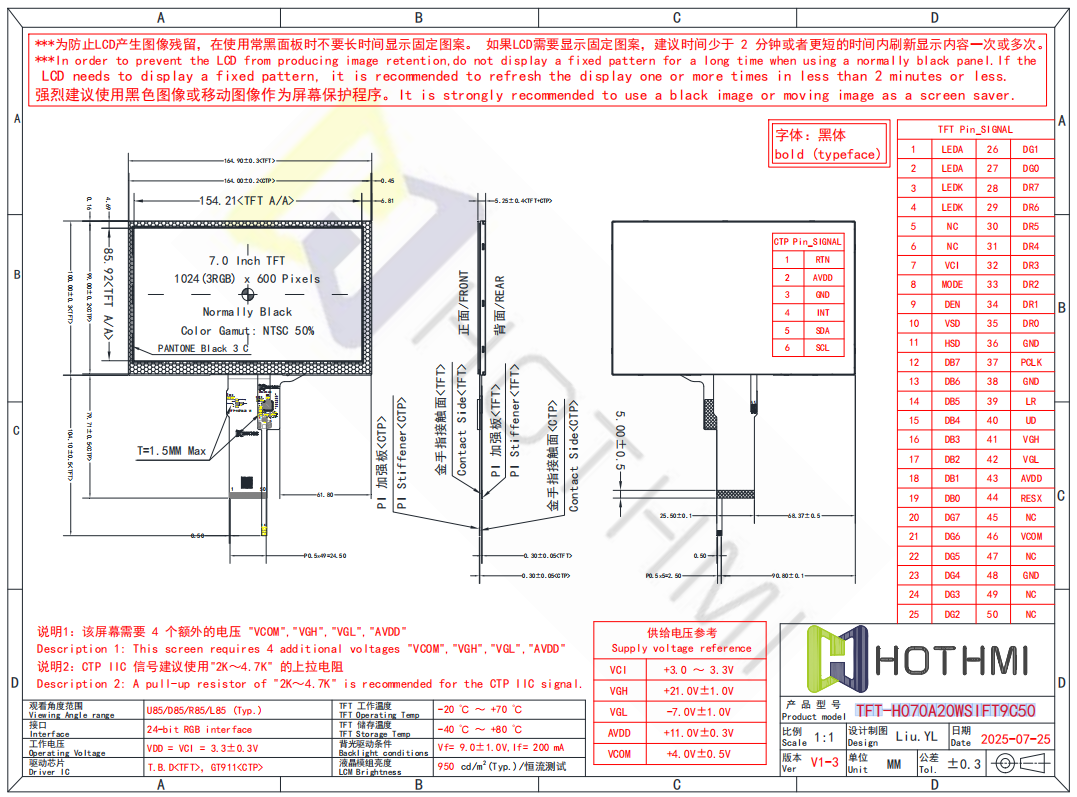

This standard 7.0-inch TFT LCD capacitive display TFT-H070A20WSIFT9C50, with a resolution of 1024x600 pixels, IPS full viewing angle, has a high-quality effect no matter which direction you watch it from, and a high-brightness LED backlight with a brightness of 950 nits. The compact size, 3.3V low-voltage power supply and impressive display quality of this display make it an excellent choice for projects that require portrait mode visual output without touch function.
This 7.0-inch LCD display uses a 50PIN FPC soft cable connection to provide a safe and reliable electrical connection. The connection method of the FPC soft cable makes disassembly simpler and easier to operate. This TFT LCD display is powered by a T.B.D controller, and the touch part is controlled by GT911. The controller optimizes the functionality of the display, ensuring smooth operation and accurate rendering of images and graphics. Popular industries for this TFT size include IoT, industrial automation, consumer electronics, test and measurement, and handheld devices. Due to their compatibility with STM32/RK, they are also ideal for DIY or prototyping projects. The RGB interface enables fast and efficient communication between STM32/RK displays, ensuring smooth data transmission and real-time updates. Our displays are all RoHS compliant and adhere to strict environmental and safety standards.
