Product type：TFT Display
Show contents：480x480
Outline size(mm) ：74.66x76.54x2.06
Size of View Window(mm)：4.0
Display size(mm) ：4.0
Effective size(mm)：71.86x70.18
Product application：handheld devices, small speakers, small home appliances ? Viewing angle: IPS full viewing angle
Visual angle：IPS
Backlight type or brightness：71.86x70.18
Connection PIN Number：FPC-40 pin
Interface mode：RGB
Special instructions：Anti-static ESD 8KV
Working temperature：-20~70℃
Power supply voltage：+3.3V
Driver chip model：ST7701S

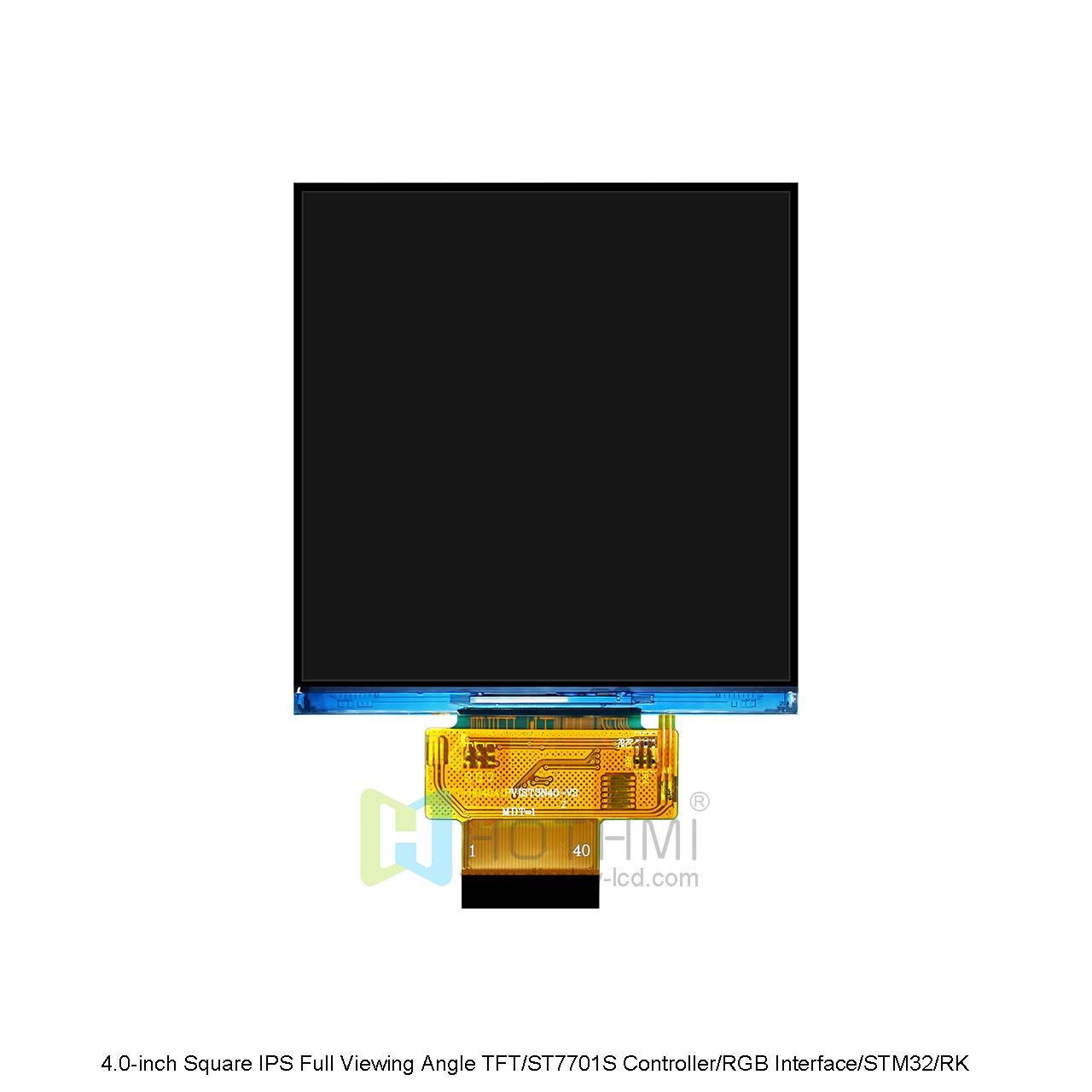

This standard 4.0-inch TFT LCD display TFT-H040A1PVIST5N40 has a resolution of 480x480 pixels, IPS full viewing angle, and high-quality effects regardless of viewing direction. The standard brightness LED backlight brightness is 350 nits. The compact size, 3.3V low voltage power supply, and impressive display quality of this display make it an excellent choice for projects that require portrait mode visual output without touch function.
This 4.0-inch LCD display uses a 40PIN FPC soft cable connection to provide a safe and reliable electrical connection. The connection method of the FPC soft cable makes disassembly easier and easier to operate. This TFT LCD display is powered by the ST7701S controller. It can provide excellent performance and reliability. The controller optimizes the functions of the display to ensure smooth operation and accurate presentation of images and graphics. Popular industries for this TFT size include IoT, industrial automation, consumer electronics, test and measurement, and handheld devices. They are also ideal for DIY or prototyping projects due to their compatibility with STM32/RK. The RGB interface enables fast and efficient communication between STM32/RK displays, ensuring smooth data transmission and real-time updates. Our displays are all RoHS compliant and adhere to strict environmental and safety standards.
