產品搜尋
類型：TFT橫屏

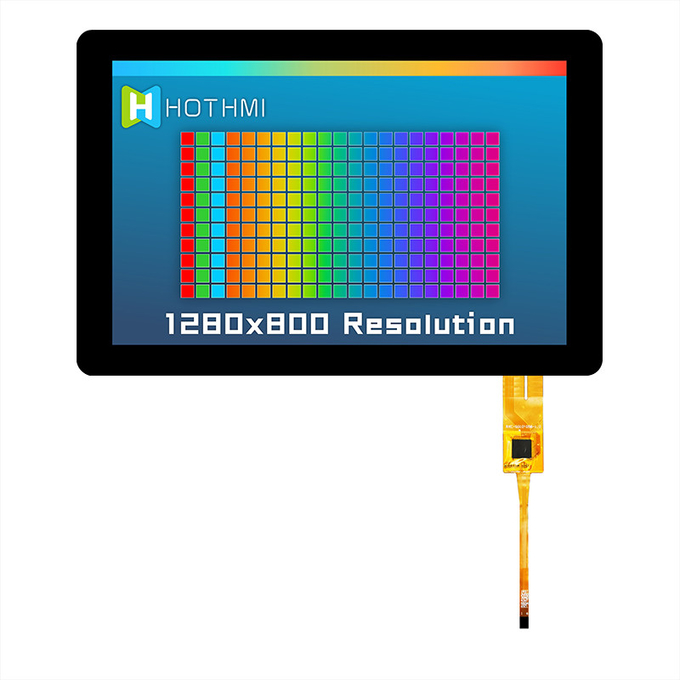

顯示像素：1280x800

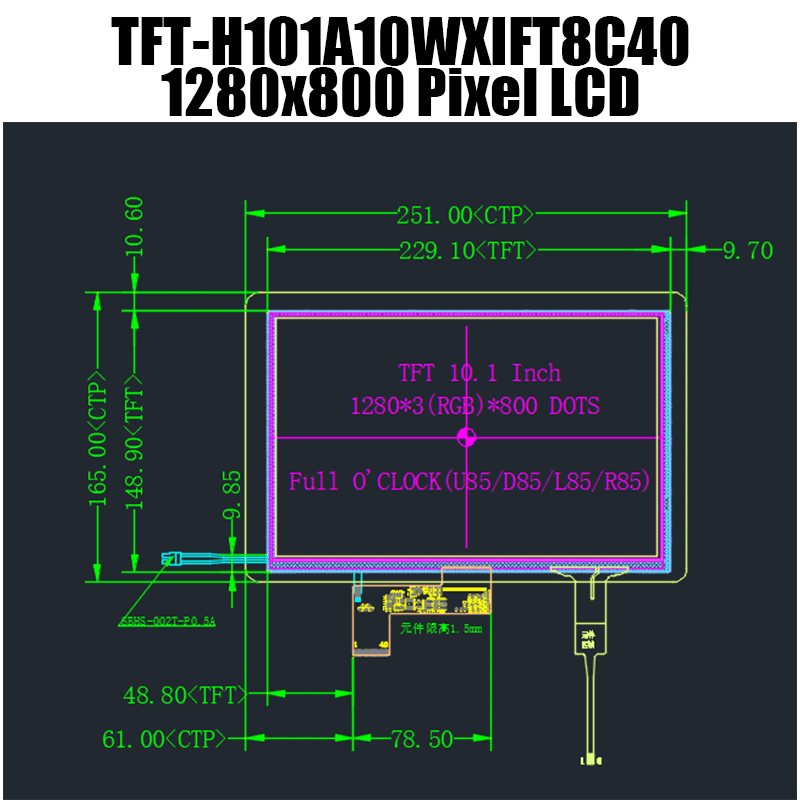

外形尺寸(mm) ：229.10x148.90x4.35
VA尺寸(mm)：10.1
AA尺寸(mm) ：10.1
有效尺寸mm：216.96x135.60
應用：車載，醫(yī)療，工控
視角：全視角

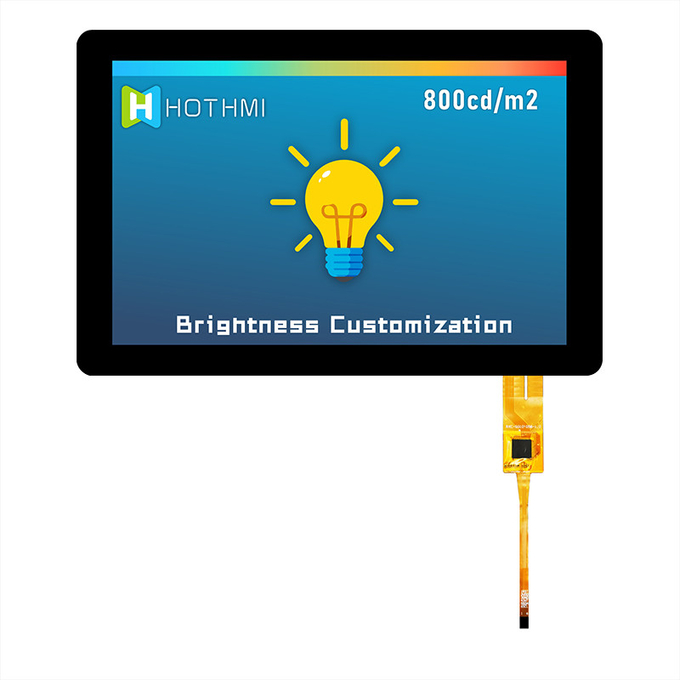

背光/亮度：800cd/m2
引腳：40pin
接口方式：LVDS

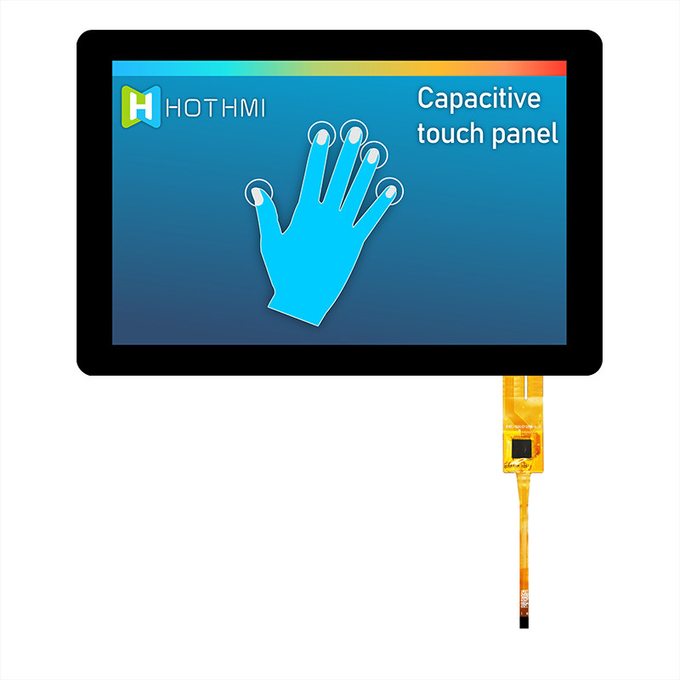

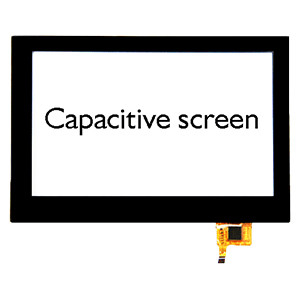

特殊說明：帶電容觸控功能

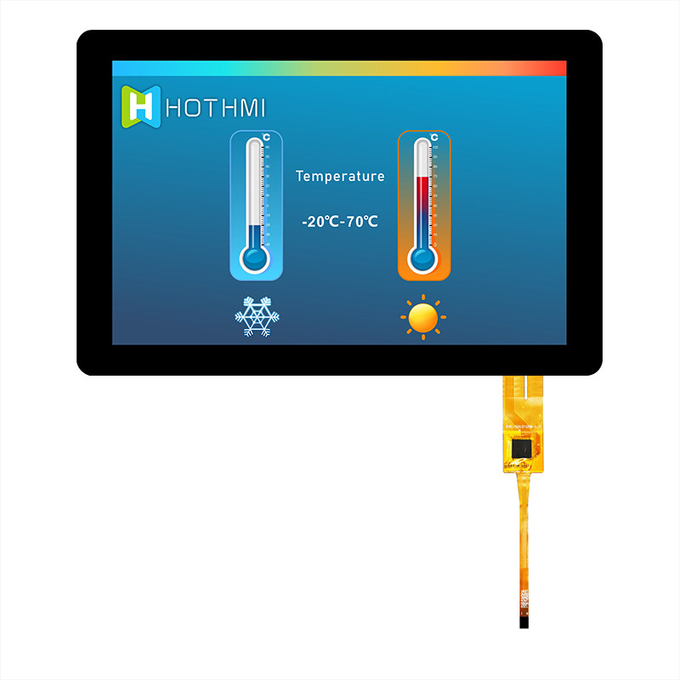

工作溫度：-20~70℃
供電電壓：3.3V

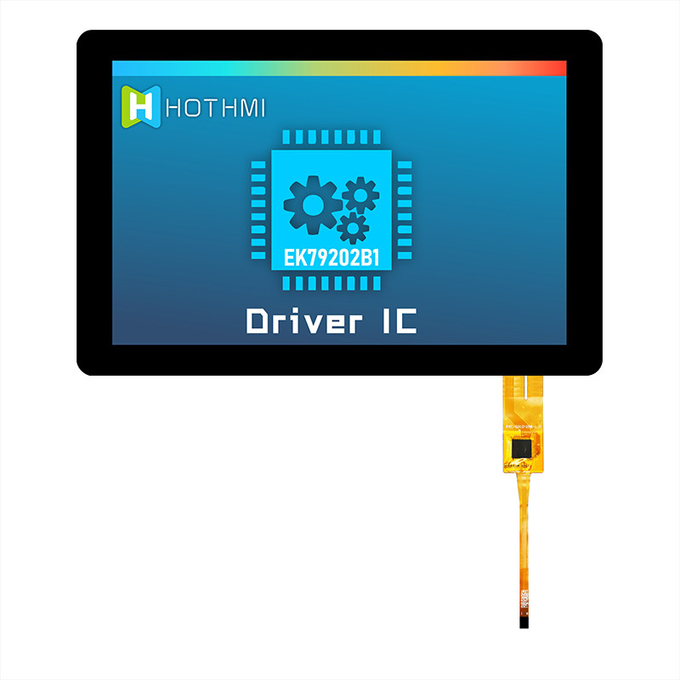

驅動芯片：EK79202B1

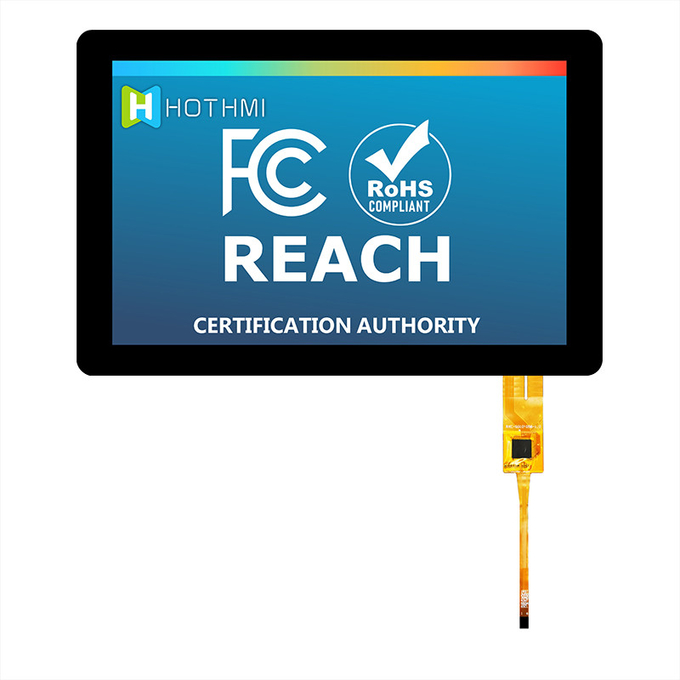

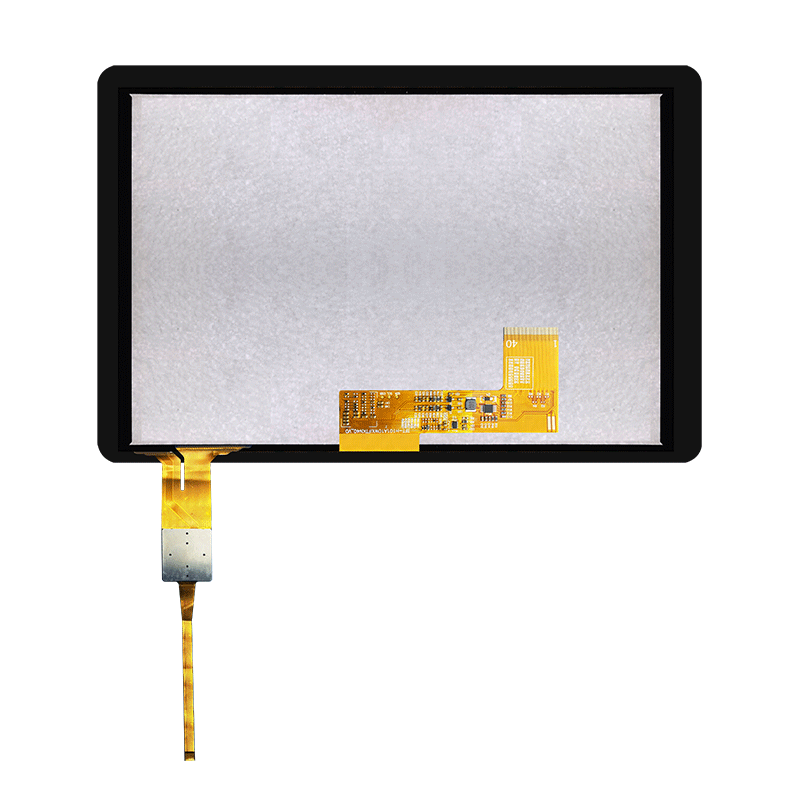

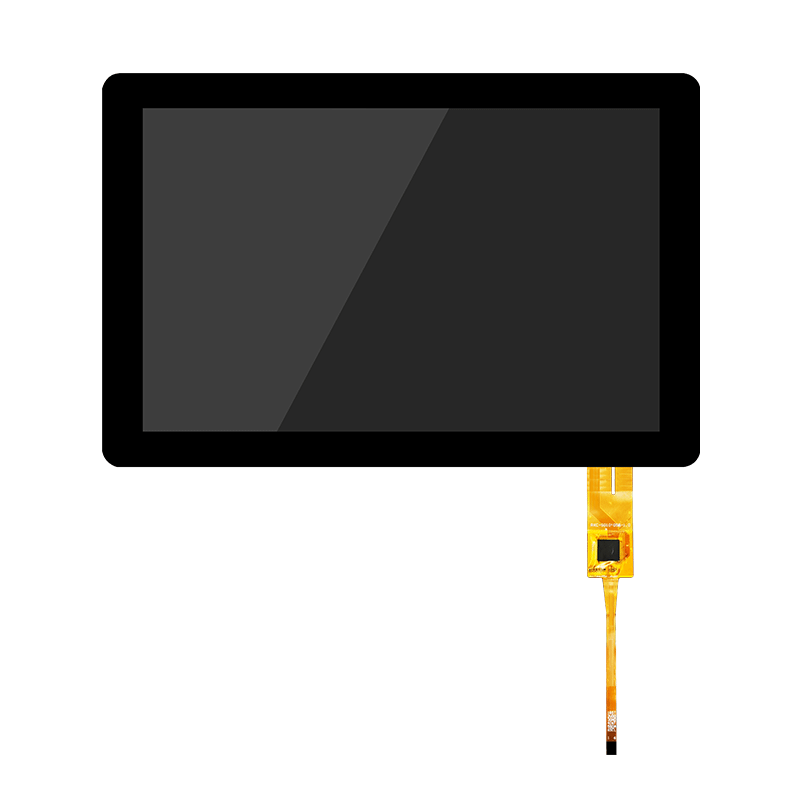

10.1寸IPS電容TFT顯示屏帶LVDS接口陽光下可讀/TFT-H101A10WXIFT8C40
TFT-H101A10WXIFT8C40-LVDS-CTP | 10.1" IPS LCD | LVDS 接口 | 電容式觸摸屏 | EMI 濾波器

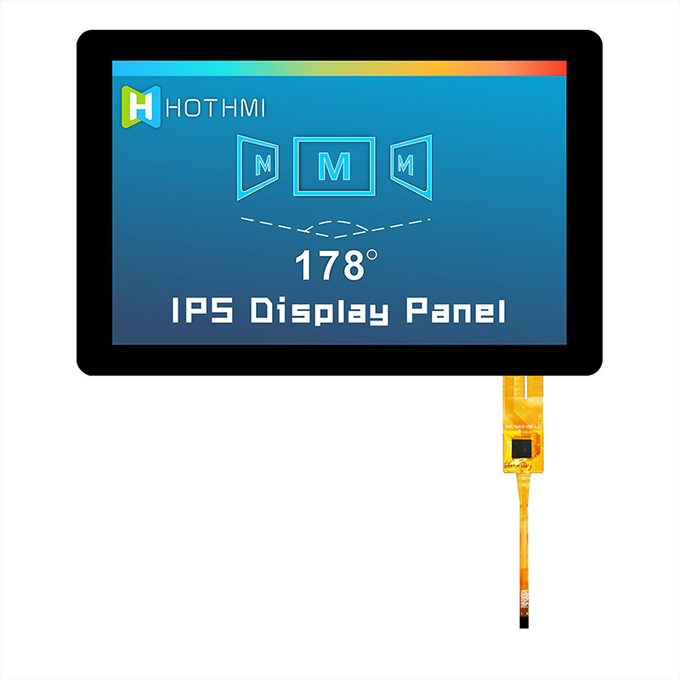

這款 10.1 英寸 TFT LCD 顯示屏具有采用 IPS 技術的 1280x800 分辨率屏幕，可在任何角度提供陽光下可讀的亮度、更好的色彩再現、更好的圖像一致性和更好的光學特性。 為了提供額外保護，這款 24 位真彩色 TFT 在輸入電源線上還包括一個 EMI 濾波器。 這款 10.1" 顯示器符合 RoHS 標準，采用 LVDS 接口，并具有電容式觸摸屏。這款 10.1" IPS 顯示器采用相同的機械尺寸和引腳排列設計，包括與 TN 顯示器相同的 EK79202B1 驅動器 IC，使其成為兼容的替代選項 對于 TN 模型。
General Feature
| Item | Standard Value | Unit | ||

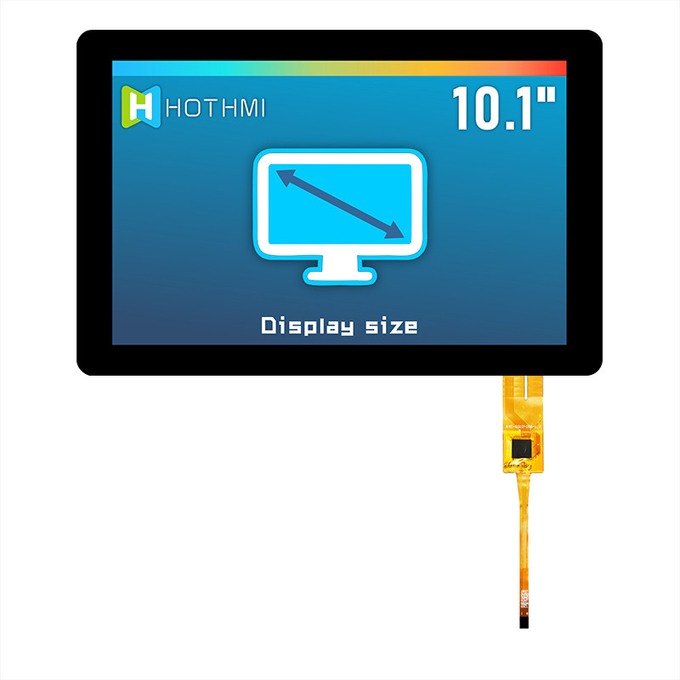

| Display Size | 10.1 | Inch | ||
| Number of Pixels | 1280(H)*3(RGB)* 800(V) | dots | ||
| Active Area | 216.96(H)* 135.60(V) | mm | ||
| Outline Dimension | 229.10(H) * 148.90(V) * 4.35(D) | mm | ||
| Viewing Direction | FULL O'clock | - | ||
| Interface | LVDS | - | ||
| Driver IC | EK79202B1 | - | ||
| Driver Condition | VCI=3.3V(Typ) | V | ||
| Backlight | - | - | ||
| Touch Panel | WHITOUT TOUCH | |||
| CTP Driver IC | - | - | ||
| Driver Condition | VDD=3.3V | V | ||
| TFT Operation AT | -20 ～ +70 | ℃ | ||
| TFT Storage AT | -30 ～ +85 | ℃ | ||
TFT Pin Description

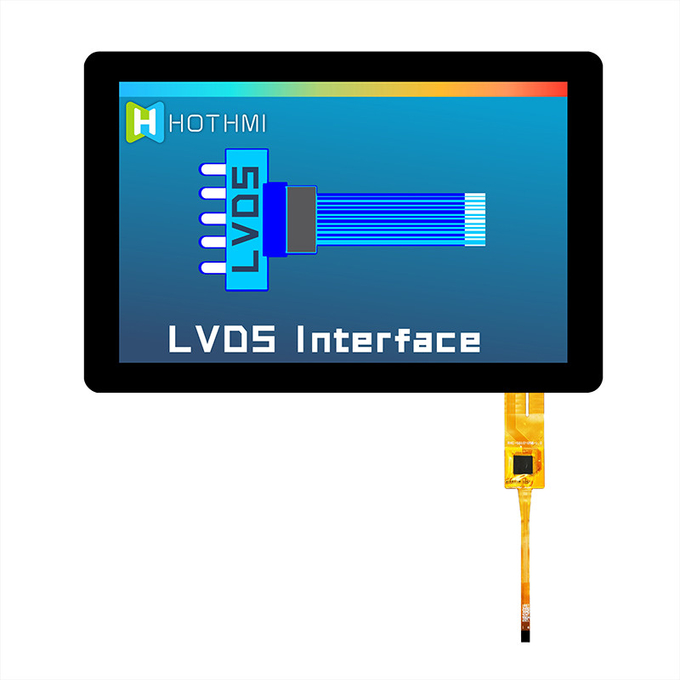

| Pin NO. | Symbol | Description |
| 1 | NC | Don't connect |
| 2~3 | VCI | Digital Power |
| 4 | NC | Don't connect |
| 5 | RESX | TFT Reset Pin.low in reset state |
| 6 | STBYB | Standby mode mode control. STBYB = ″VCI″normal operation;STBYB = ″GND″Standby mod |
| 7 | GND | Ground |
| 8 | D0N | LVDS data input pins |
| 9 | D0P | LVDS data input pins |
| 10 | GND | Ground |
| 11 | D1N | LVDS data input pins |
| 12 | D1P | LVDS data input pins |
| 13 | GND | Ground |
| 14 | D2N | LVDS data input pins |
| 15 | D2P | LVDS data input pins |
| 16 | GND | Ground |
| 17 | DCKN | LVDS clock input pins. |
| 18 | DCKP | LVDS clock input pins. |
| 19 | GND | Ground |
| 20 | D3N | LVDS data input pins |
| 21 | D3P | LVDS data input pins |
| 22 | GND | Ground |
| 23~24 | NC | Don't connect |
| 25 | GND | Ground |
| 26~27 | NC | Don't connect |
| 28 | HSD | 18-bit / 24-bit input select. HSD=″VCI″ 24 bit ; HSD=″GND″ 18 bit |
| 29 | NC | Don't connect |
| 30 | GND | Ground |
| 31~32 | LEDK | LED Cathode |
| 33~38 | NC | Don't connect |
| 39~40 | LEDA | LED Anode |
