Location：Home > Product Center > Standard COB LCD Module

Standard COB LCD Module

The liquid crystal display module and the liquid crystal module refer to components for assembling a liquid crystal display device, a connecting member, a peripheral circuit for controlling and driving, a PCB circuit board, a backlight, and a structural member.
The technical specifications of the liquid crystal display module (LCM) currently available from Xin Hongtai are as follows:
The number of dot matrix is: 122*32, 128*64, 160*32, 256*32, 192*64, 240*64, 160*128, 240*128, 256*128, 320*240, 640*200, etc. Product
Working temperature: normal temperature 0 ~ +50 ° C, wide temperature -20 ~ +70 ° C, ultra wide temperature -30 ~ + 80 ° C;
Interface type: 3-wire or 4-wire SPI serial port, 8-bit or 16-bit MCU parallel port, I2C, RS232 or RS485, USB interface;
Display mode: black on white, black on yellow and green, black on blue, white on blue, white on black, custom silk screen, etc.

Back

Screening results

Model	Product type	Show contents	Outline size (mm)	Horizon (mm)	Display size mm/inch	Point spacing mm	Visual angle	Interface	Instructions	Working temperature	Voltage	Driver chip model

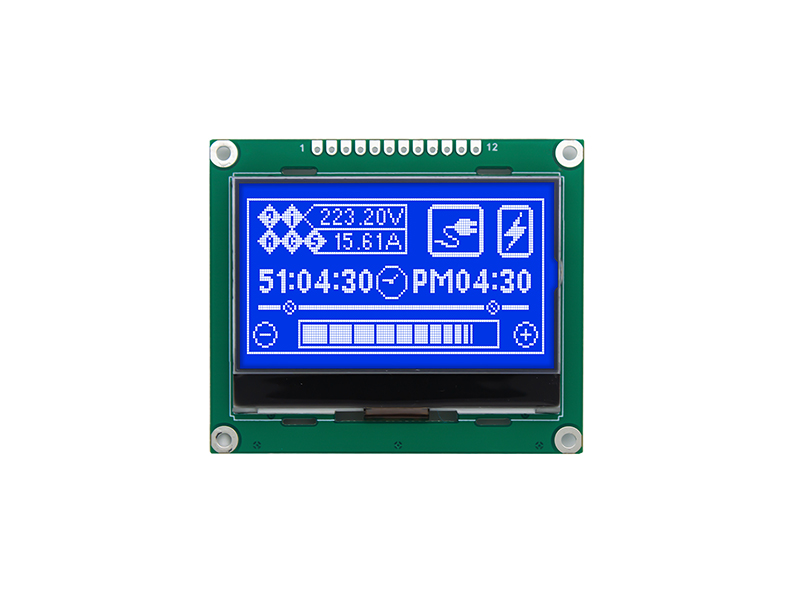

Graphic LCD Module \|2.4" 132x64 STN-\| White Display on Blue \| ST7567 \| SPI \| Arduino HTM-C0G13264C01A-25W-SPI	Graphic LCD Module	132x64	66.0x56.2x5.5	53.2x31.5	48.81x26.21	0.41x0.37	6H	SPI	Anti-static ESD 8KV	-20~70℃	+3.3V	ST7567
Graphic LCD Module \| 132x64 STN Display+ \| Yellow-Green Backlight \| ST7567 \| SPI \| Arduino HTM-C0G13264C01A-11Y-SPI	Graphic LCD Module	132x64	66.0x56.2x5.5	53.2x31.5	48.81x26.21	0.41x0.37	6H	SPI	Anti-static ESD 8KV	-20~70℃	+3.3V	ST7567

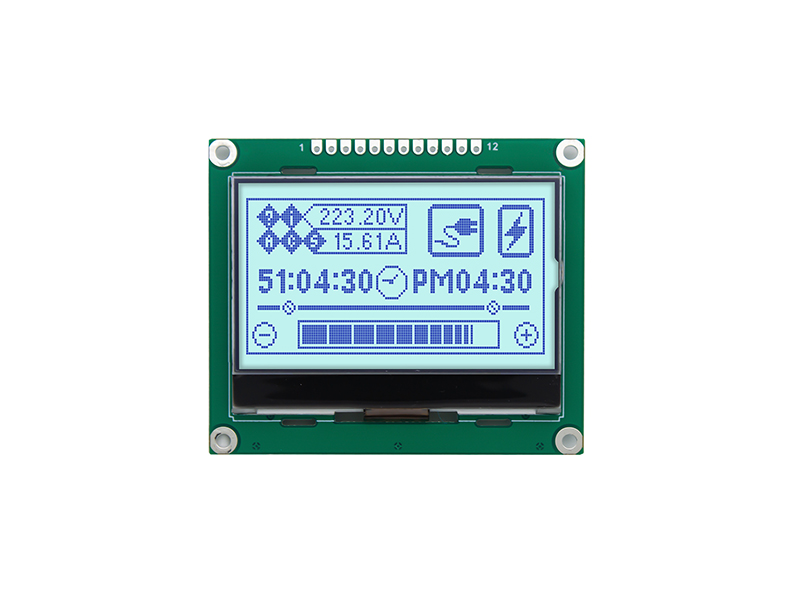

Graphic LCD Module \| STN+ \| 2.4" 132x64 Display Blue on Gray \| ST7567 \| SPI \| Arduino HTM-C0G13264C01A-11W-SPI	Graphic LCD Module	132x64	66.0x56.2x5.5	53.2x31.5	48.81x26.21	0.41x0.37	6H	SPI	Anti-static ESD 8KV	-20~70℃	+3.3V	ST7567

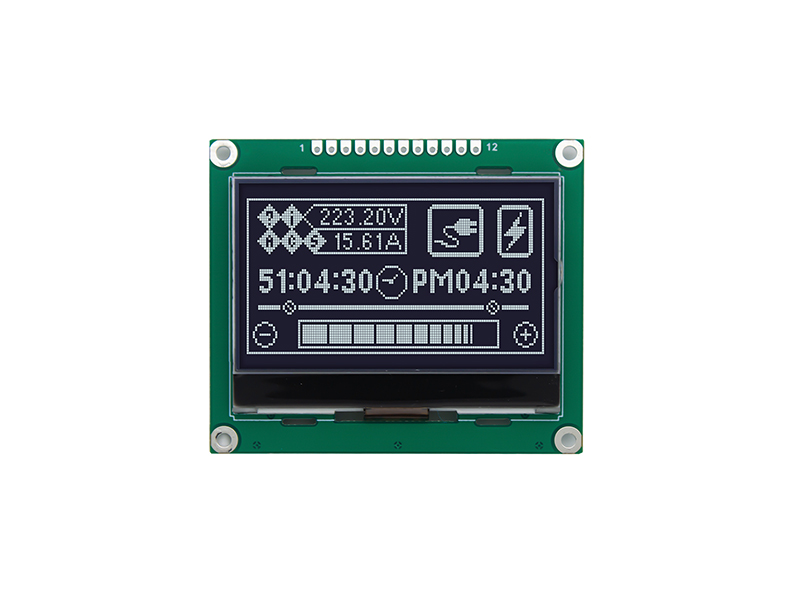

Graphic LCD Module \| DFSTN-\| 2.4" 132x64 Display White on Black \| ST7567 \| SPI \| Arduino HTM-C0G13264C01A-41W-SPI	Graphic LCD Module	132x64	66.0x56.2x5.5	53.2x31.5	48.81x26.21	0.41x0.37	6H	SPI	Anti-static ESD 8KV	-20~70℃	+3.3V	ST7567
Graphic LCD Module \| FSTN+ \|132x64 LCD Display \| ST7567 \| SPI \| Arduino HTM-C0G13264C01A-31W-SPI	Graphic LCD Module	132x64	66.0x56.2x5.5	53.2x31.5	48.81x26.21	0.41x0.37	6H	SPI	Anti-static ESD 8KV	-20~70℃	+3.3V	ST7567

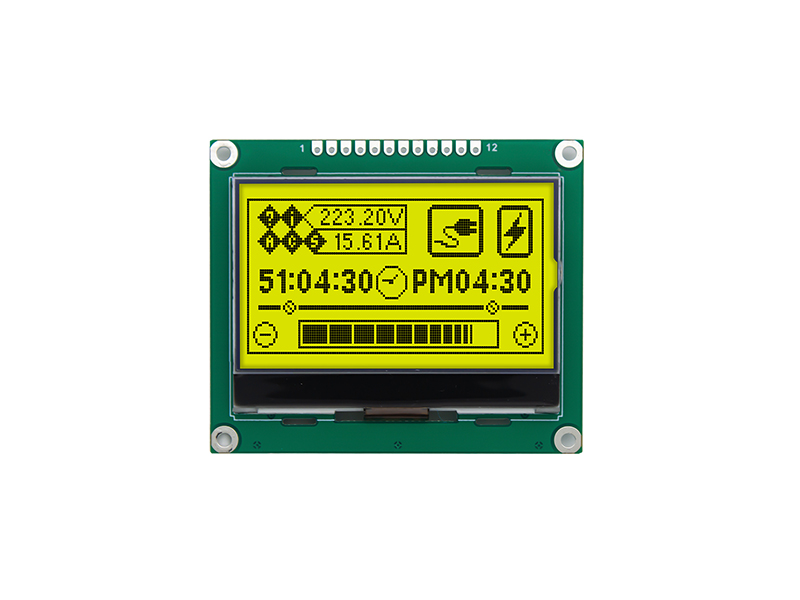

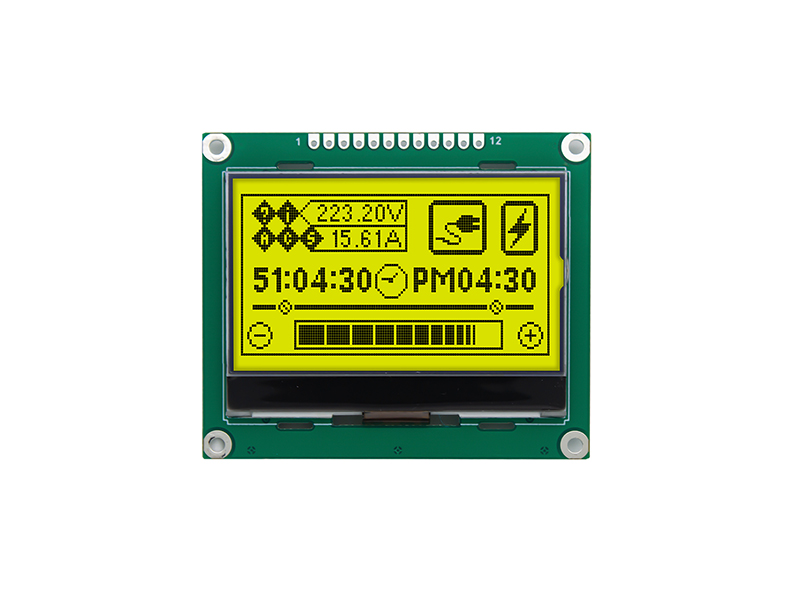

Graphic LCD Module \| STN+Yellow-Green \|132x64 Display \| ST7567 \|SPI \| Arduino HTM-C0G13264C01A-01Y-SPI	Graphic LCD Module	132x64	66.0x56.2x5.5	53.2x31.5	48.81x26.21	0.41x0.37	6H	SPI	Anti-static ESD 8KV	-20~70℃	+3.3 V	ST7567

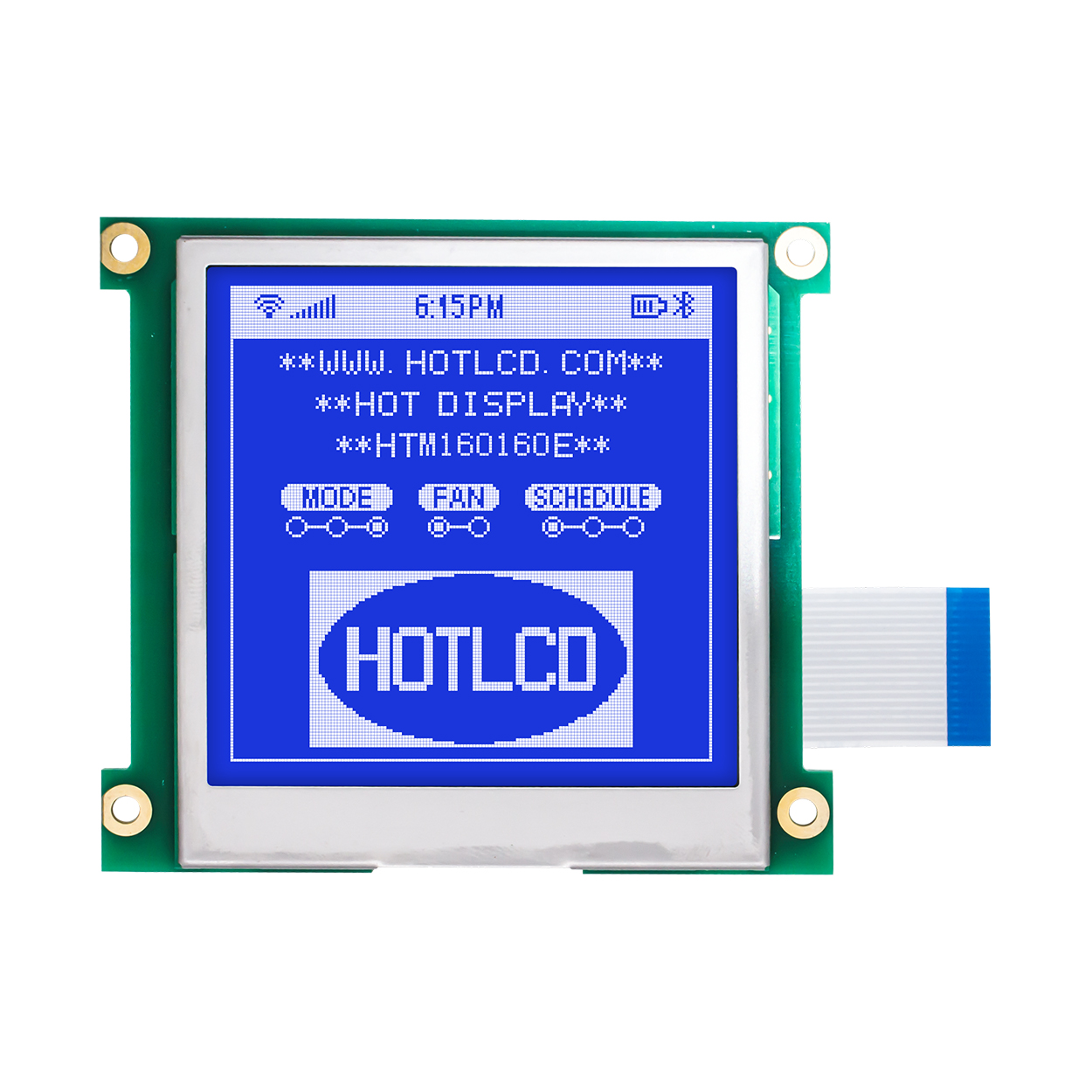

Graphic LCD Module \| STN- \| 8.9" 160X160 White on Blue \| UC1698 \| MCU \| Arduino \| 3.3V HTM160160E-25W-N3P	Graphic LCD Module	160x160	83.876.58.5	60.0*60.0	54.4*54.4	0.34x0.34	6H	MCU	Anti-static ESD 8KV	-20~70℃	+3.3V	UC1698

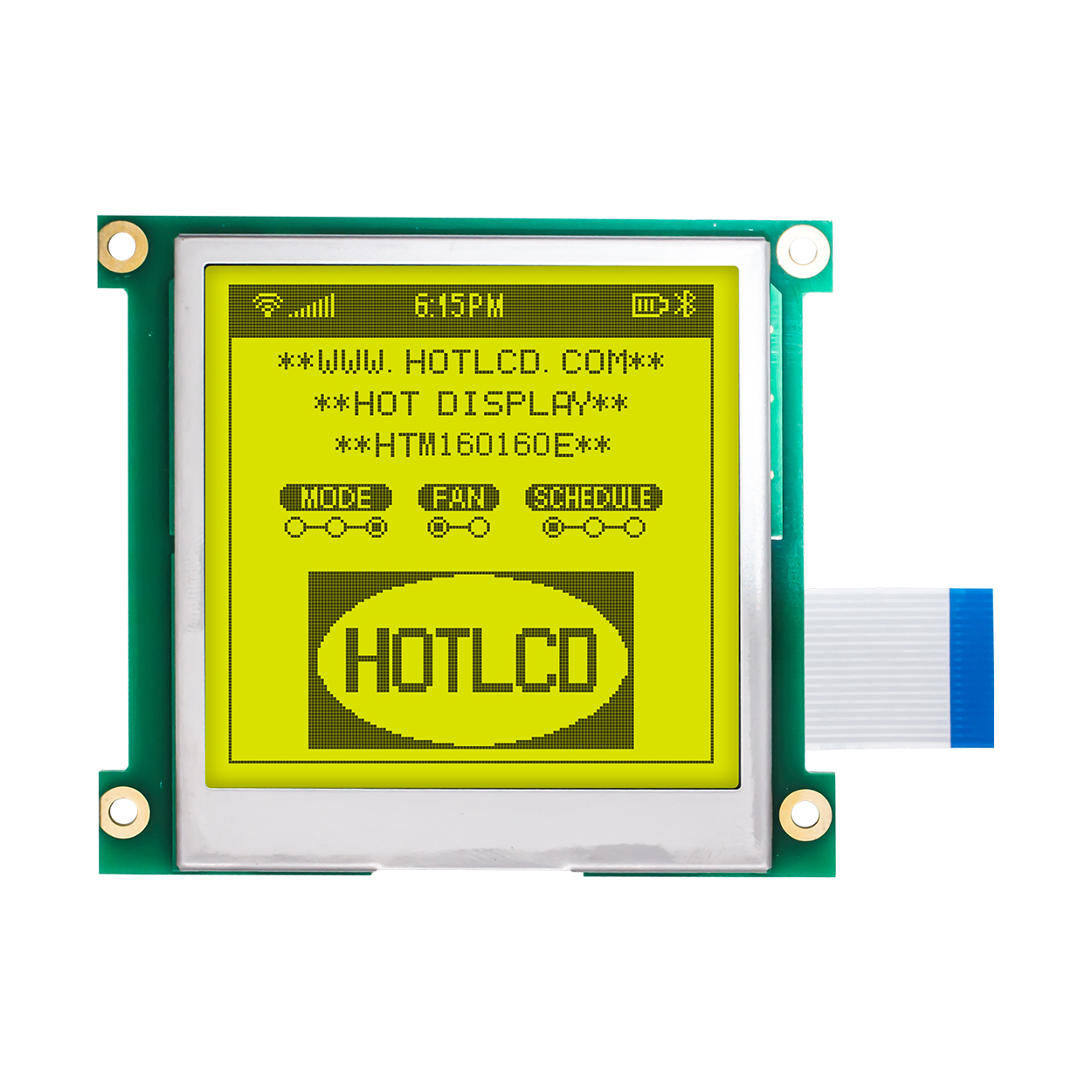

Graphic LCD Module \| STN+ \| 8.9" 160X160 Yellow-Green Backlight \| UC1698 \| MCU \| Arduino \| 3.3V HTM160160E-11Y-N3P	Graphic LCD Module	160x160	83.876.58.5	60.0*60.0	54.4*54.4	0.34x0.34	6H	MCU	Anti-static ESD 8KV	-20~70℃	+3.3 V	UC1698

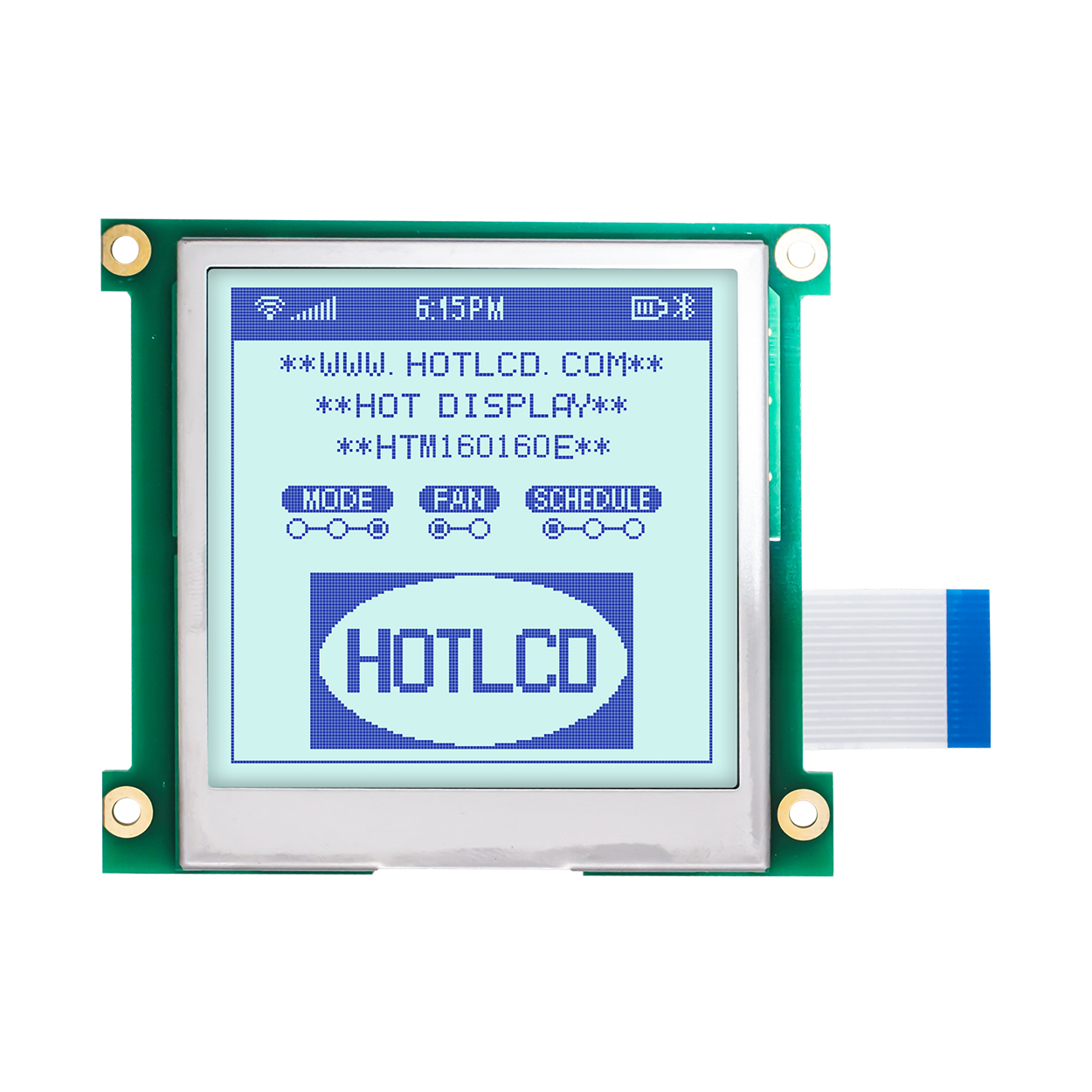

Graphic LCD Module \| STN+ \| 8.9" 160X160 Gray Background with Blue Text \| UC1698 \| MCU \| Arduino \| 3.3V HTM160160E-11W-N3P	Graphic LCD Module	160x160	83.876.58.5	60.0*60.0	54.4*54.4	0.34x0.34	6H	MCU	Anti-static ESD 8KV	-20~70℃	+3.3V	UC1698

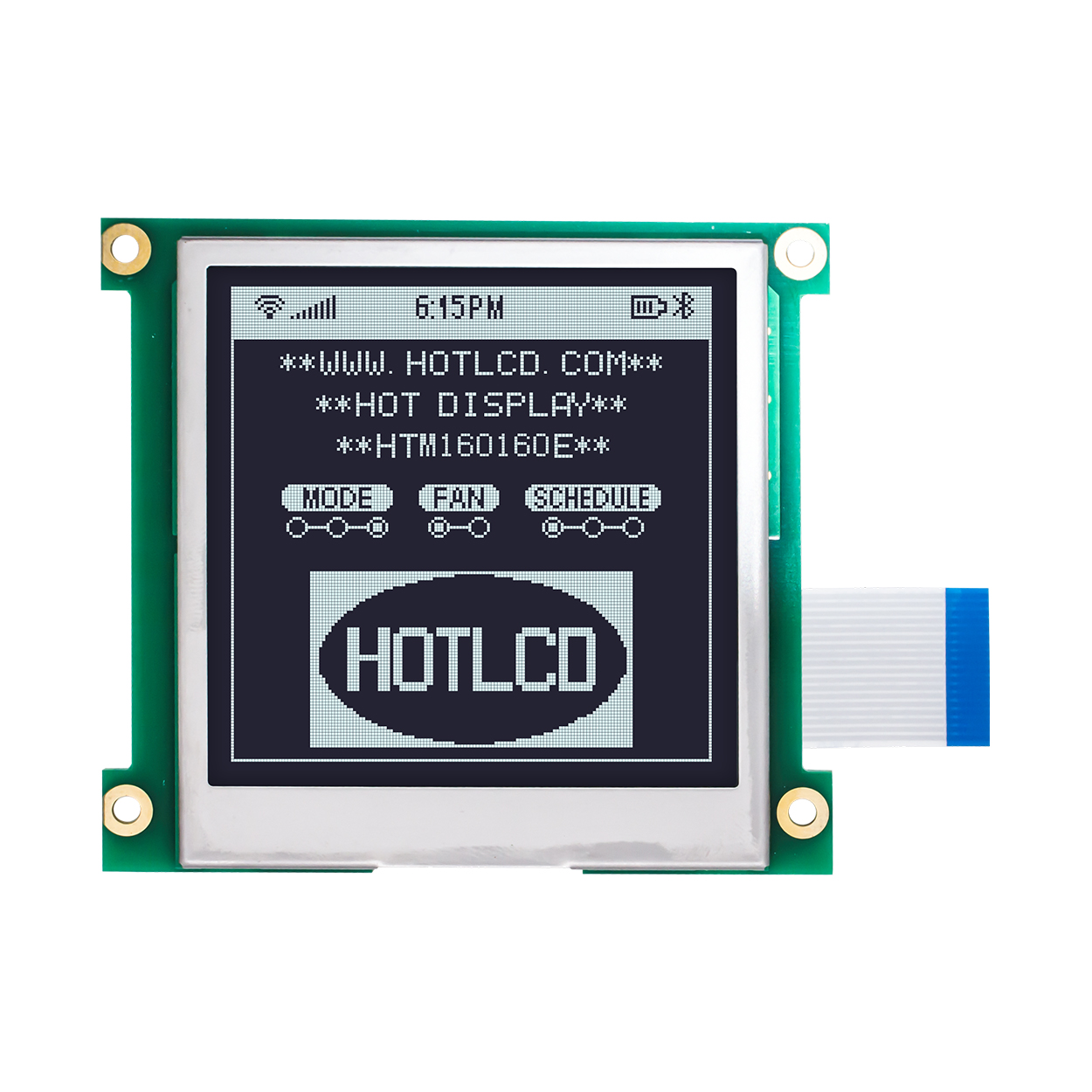

Graphic LCD Module \| DFSTN- \| 8.9" 160X160 White on Black \| UC1698 \| MCU \| Arduino \| 3.3V HTM160160E-41W-N3P	Graphic LCD Module	160x160	83.876.58.5	60.0*60.0	54.4*54.4	0.34x0.34	6H	MCU	Anti-static ESD 8KV	-20~70℃	+3.3V	0.34x0.34
