The car-grade and special-type TFT display series is a high-end product category that Xin Hongtai HOTLCD has specially designed for automotive electronics and special industries. In recent years, with the rapid development of technology and intelligence of automotive electronics, various car companies are constantly changing the size of the central control display from monochrome to color. The size of the color screen ranges from a minimum of 3.5 inches to a current maximum of 12.3 inches. The control of the central control panel is getting more and more, and the full LCD display instrument panel will gradually become the "core configuration" of the car.
Xin Hongtai HOTLCD can provide 10.1 inch, 10.3 inch, 12.3 inch three long strip high-resolution car display screens, and later will develop more large-size car-class special display.
| Checklist | Model | Product type | Show contents | Product map |
Outline size (mm) |
Horizon (mm) |
Display size mm/inch |
Effective size mm |
Visual angle | Brightness | Pin | Interface | Instructions | Working temperature | Voltage | Driver chip model |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

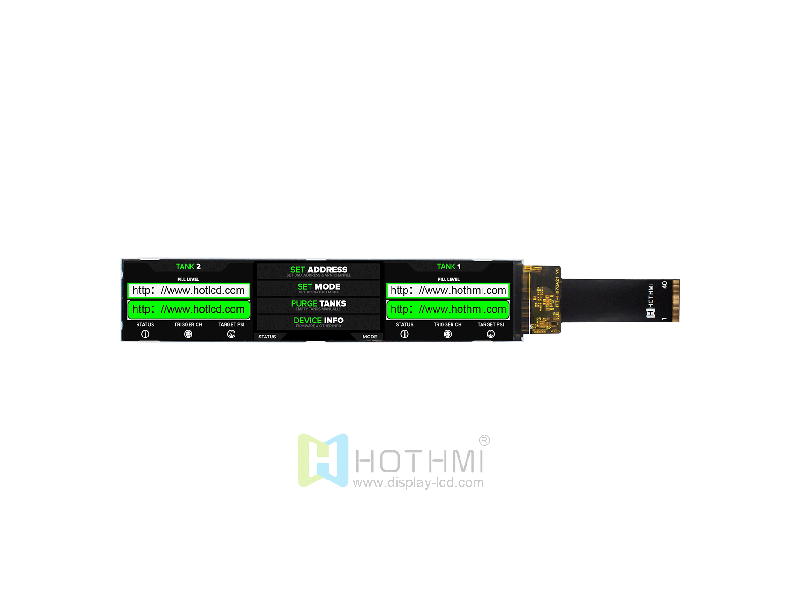

| 7.0 inch IPS TFT LCD display / 280x1424 resolution color display TFT-H070A21ZBINV6N40 | TFT | 280X1424 |
|
182.47x38.2x3.45 | 7.0 | 7.0 | 170.88x33.6 | IPS | white backlight 650cd/M2 | FPC-40 pin | MIPI | Anti-static ESD 8KV | -30~80℃ | +3.3 V | ST7703 | |

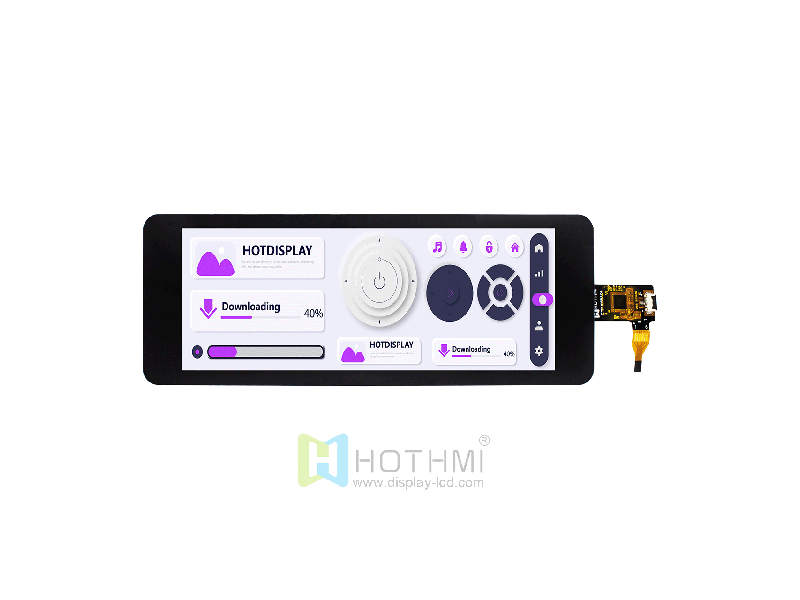

| 6.8 inch TFT LCD/480x1280 Resolution/Wide Temperature/IPS Full Viewing Angle/Capacitive Touch Screen/Sunlight Readable/TFT-H068A04ZAINV6C40 | TFT | 480x1280 |
|
73.5*195.39.6*6.4 | 6.8 | 6.8 | 60.192*160.512 | IPS（U80/D80/R80/L80） | 600cd/M2 | 40pin | RGB 24 Bit+3-SPI | with touch screen | -20~70℃ | +3.3 V | +3.3 V | |

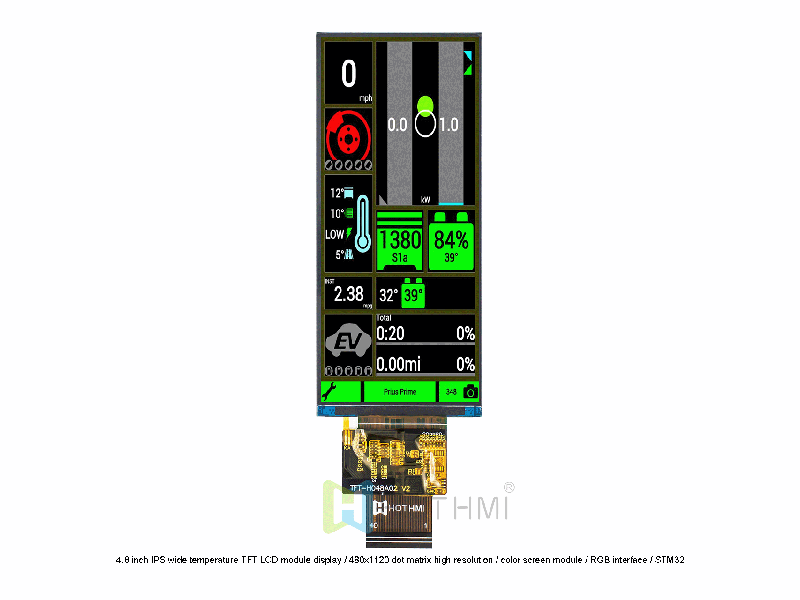

| 4.8 inch IPS wide temperature TFT LCD module display / 480x1120 dot/ color screen module / RGB interface / STM32/TFT-H048A02ZAIJD3N40 | TFT LCD | 480x1120 |
|
51.46x119.67x2.08 | 4.8 | 4.8 | 47.95x112.56 | Full view | 350cd/m2 | FPC-40PIN | RGB | Anti-static ESD 8KV | -30~80℃ | 3.3V | T.B.D | |

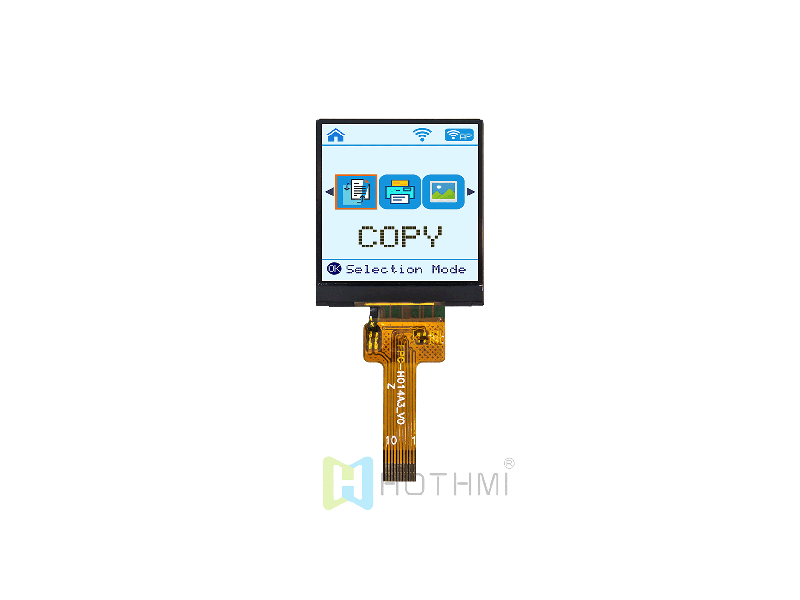

| 1.4 inch square TFT LCD display module/IPS full viewing angle/240x240 dot matrix/SPI interface/ST7789/compatible with Arduino/TFT-H014A3DQIST4N10 | TFT square | 240x240 |
|
27.56x30.7x1.82 | 1.4 | 1.4 | 25.2x25.2 | Full view | 400cd/m2 | FPC-10PIN | SPI | Anti-static ESD 8KV | -20~70℃ | 2.8V | ST7789 | |
| 1.14-inch bar TFT LCD display module/IPS/135x240 dot matrix/MIPI/JD9852/readable sunlight/compatible with Android TFT-H011A1QCIFT5N15 | TFT bar | 135X240 |
|
17.60x31.0x1.65 | 1.14 | 1.14 | 14.8635x24.9120 | Full view | 500cd/m2 | FPC-15PIN | MIPI | Anti-static ESD 8KV | -20~70℃ | 2.8V | JD9852 | |

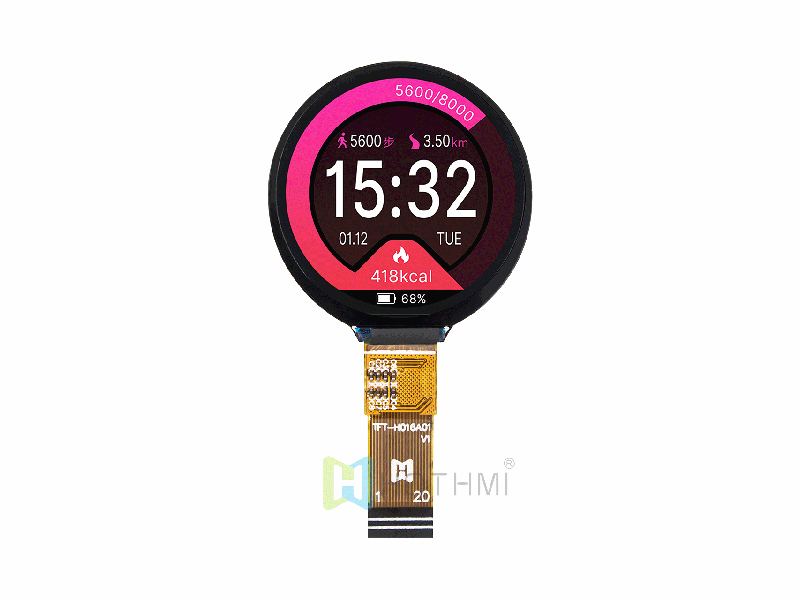

| 1.6-inch round TFT LCD display/MIPI interface/400x400 dots/IPS full viewing angle/wide temperature/ST7797/TFT-H016A01ZGIST4N20 | TFT circular | 400x400 |
|
42.14x44.34x1.95 | 1.6 | 1.6 | 39.84x39.84 | Full view | 500cd/m2 | FPC-20PIN | MIPI | Anti-static ESD 8KV | -30~80℃ | 3.3V | ST7797 | |

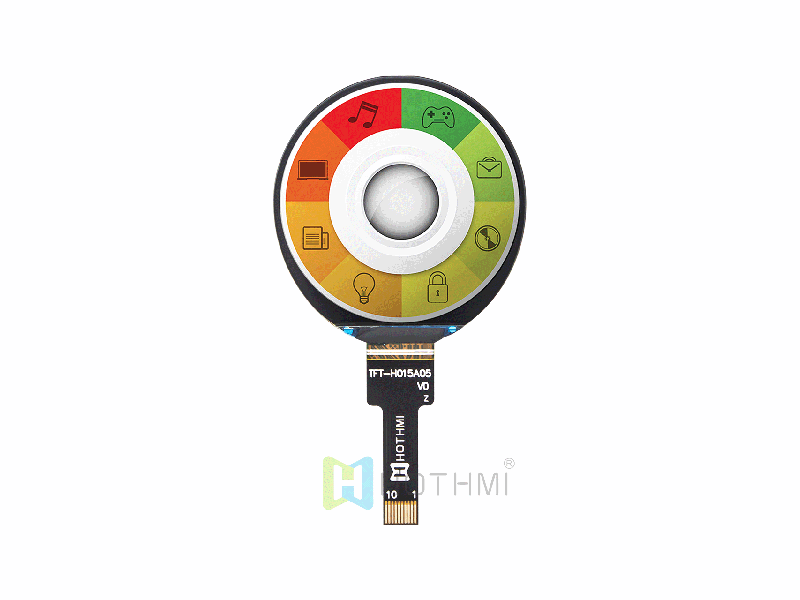

| 1.5 inch round TFT LCD display 360x360 dot matrix/IPS full viewing angle/wide temperature/ST77916/optional touch screen/TFT-H015A05ZNIST3N10 | TFT circular screen | 360x360 |
|
39.3x40.96x1.6 | 1.5 | 1.5 | 37.3x37.3 | Full view | 300cd/m2 | FPC-10PIN | SPI | Anti-static ESD 8KV | -30~80℃ | 3.3V | ST77916 | |

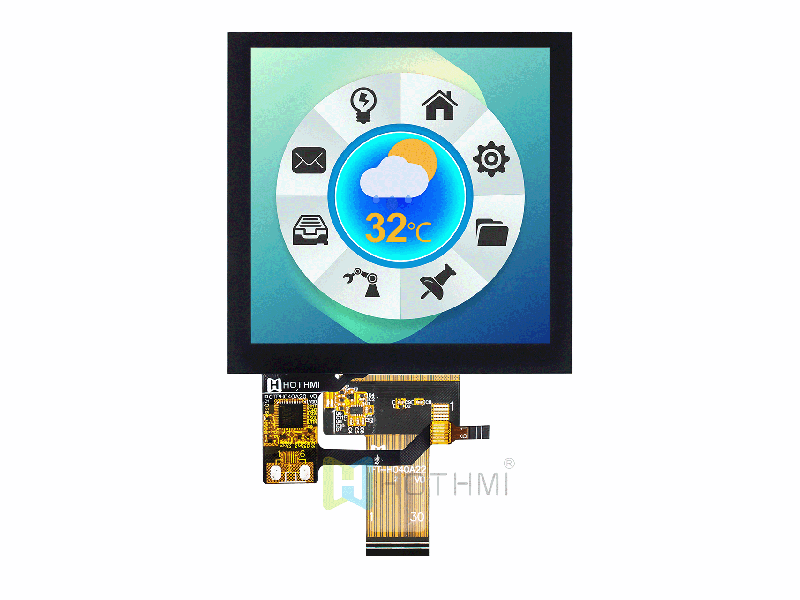

| 4.0inch square TFT LCD module display 720X720px HD/ST7701S/LVDS interface/IPS/with capacitive touch screen/TFT-H040A22DKINV3C30 | TFT square | 720x720 |
|
80.150x83.2x3.8 | 4.0 | 4.0 | 71.928x71.928 | IPS全視角 | 350cd/m2 | FPC-30PIN | LVDS | With capacitive touch function | -30~80 ℃ | 3.3V | ST7701S | |

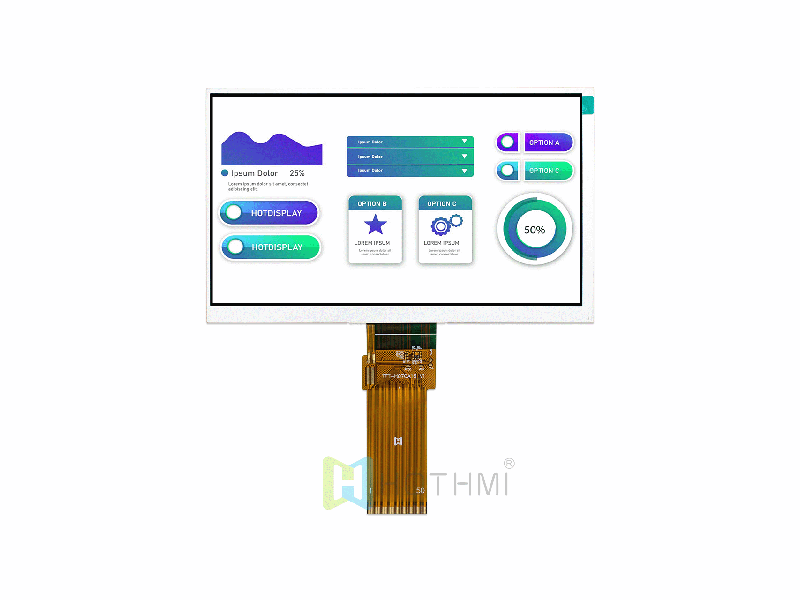

| 7-inch TFT display TN 800x480px sunlight readable EK9716 RGB interface/can be equipped with touch screen/TFT-H070A16SVTFTKN50 | TN TFT | 800x480 |
|
165x101.55x7.50 | 7.0 | 7.0 | 153.84x85.63 | 12H | 1000cd/m2 | FPC-50PIN | RGB | Anti-static ESD 8KV | -20~70℃ | 3.3V | EK9716 | |
| 2.4-inch transflective TFT display TN 240x320px sunlight readable MCU interface/can be equipped with touch screen/TFT-H024A22AVIST1N40 | TN TFT | 240x320 |
|
42.72x58.65x2.61 | 2.4 | 2.4 | 36.72x49.26 | 12H | 100cd/m2 | FPC-40PIN | MCU 8080 | Anti-static ESD 8KV | -30~80℃ | 3.3V | ST7789 |
