Product type:HI driver-free module
Show contents:1024x768
Outline size(mm) :203x161x23.5
Size of View Window(mm):8.0
Display size(mm) :8.0
Effective size(mm):162.05x121.54
Product application:Vehicle, medical, industrial control
Visual angle:12H
Backlight type or brightness:250cd/m2
Connection PIN Number:49pin
Interface mode:HI/VGA
Special instructions:Anti-static ESD 8KV
Working temperature:-20~70℃
Power supply voltage:9V~12V
Driver chip model:T.B.D

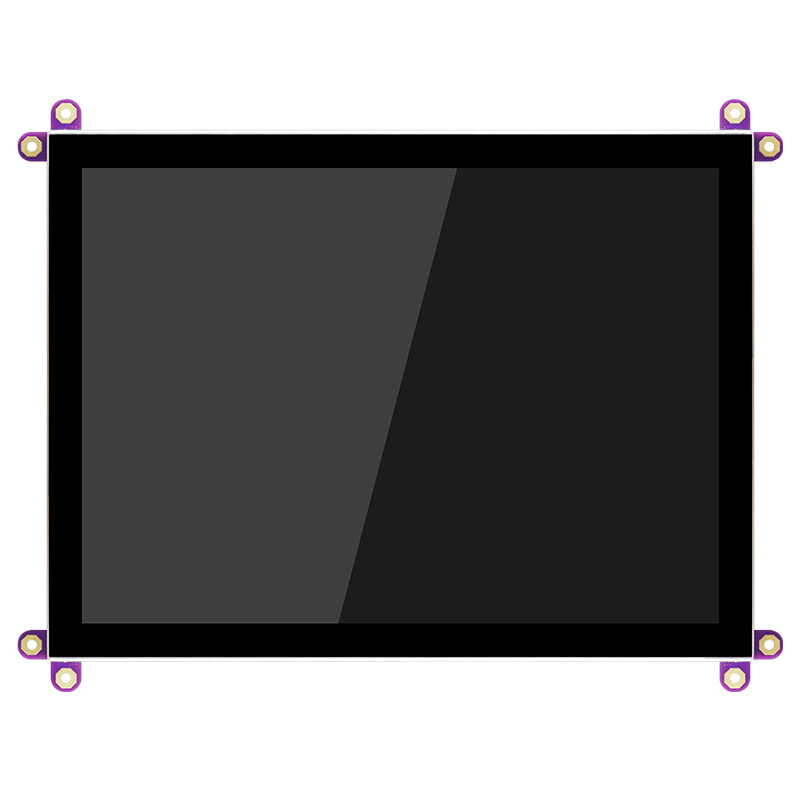

LCM-TFT080T61XGHDVUSDC | 8.0" LCD Driver-Free Module | 1024x768 Pixels | Interface | 49-Pin FFC ZIF Connection | With Driver Control Board | Optional Capacitive Or Resistive Touch Screen
LCM-TFT080T61XGHDVUSDC Is An 8-Inch Color LCD Module With Driver Board, 1024x768 Resolution, Optional Resistive Touch Screen And Capacitive Touch Screen, And USB Interface Driver Board. In Order To Make It More Convenient For Customers To Use, We Redesigned The Driver Board And Integrated It With The Display Screen, Which Can Save More Space For Customers. Four Positioning Holes Make Installation More Convenient For Customers. All Materials Comply With Environmental Protection Requirements And RoHS Standards. This Module Is Widely Used In Vehicles, Security, Various Instruments, Smart Devices, Etc. Applicable To Raspberry Pi, Etc. When Used On Raspberry Pi, It Is Compatible With Raspbian, Ubuntu, WIN10 IOT And Other Operating Systems, And Supports Microcontroller Touch. The Desktop Computer Is Compatible With Windows 7/8/8.1/10 And Other Systems. It Can Be Equipped With Capacitive Touch And Supports 10-Point Touch. All Materials Comply With Environmental Requirements RoHS Standards.
