Product type: TFT Module
Show contents:1024x600
Outline size(mm) :166.1x101.2x8.3
Size of View Window(mm):7.0
Display size(mm) :7.0
Effective size(mm):154.21x85.92
Product application:Vehicle, medical, industrial control
Visual angle:Full view
Backlight type or brightness:500cd/m2
Connection PIN Number:22pin
Interface mode:VGA
Special instructions:Anti-static ESD 8KV
Working temperature:-20~70℃
Power supply voltage:9V~12V
Driver chip model:T.B.D
HTM -TFT070 A7| 7.0" LCD Driver-Free Module | 1024x600 Pixels | Interface | 23-Pin FFC ZIF Connection | With Driver Control Board | Optional Capacitive Or Resistive Touch Screen

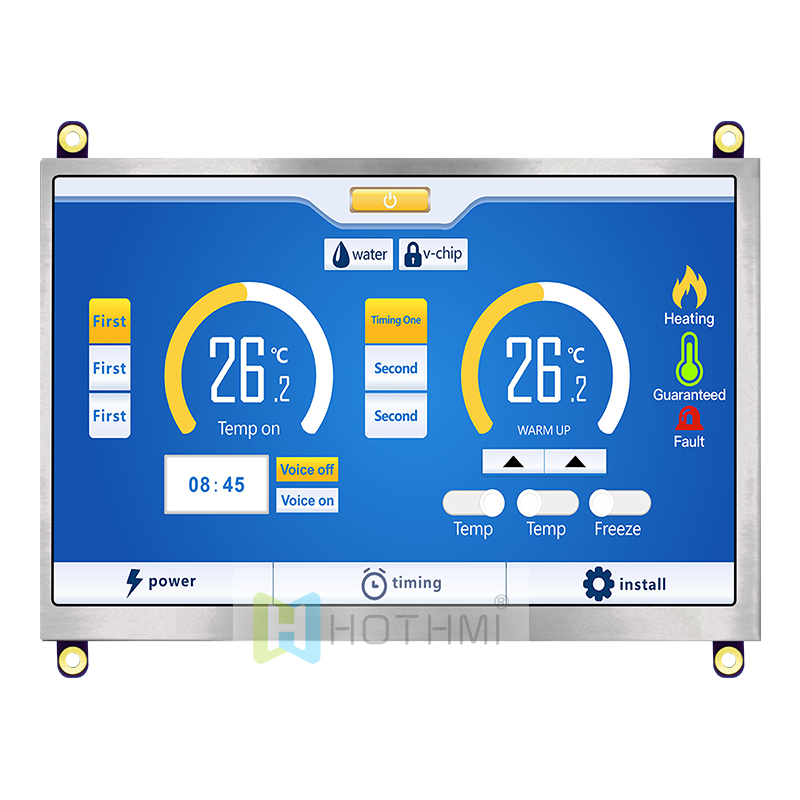

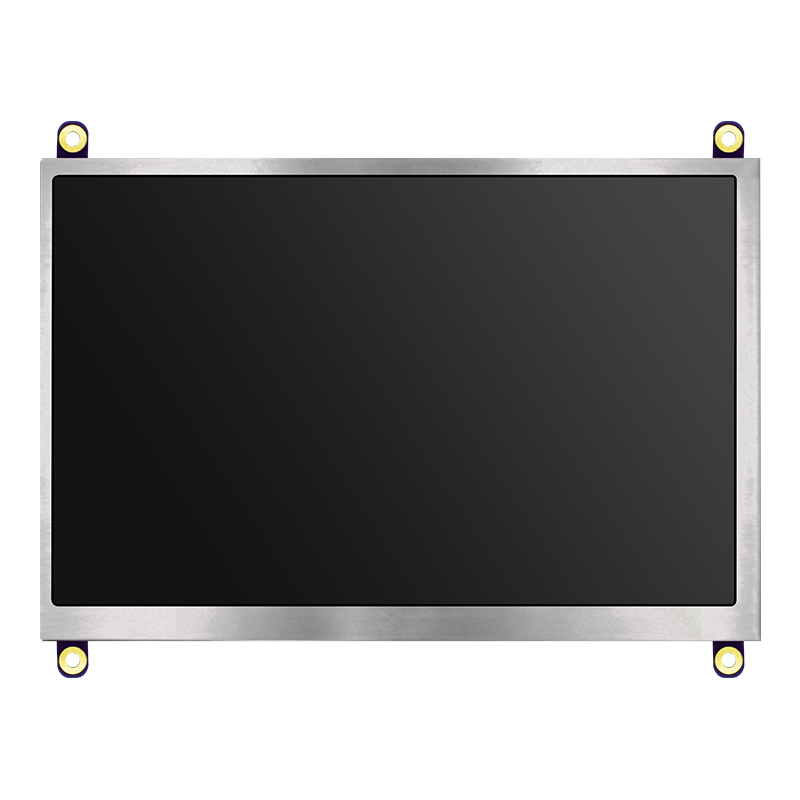

HTM-TFT070 A7- Is A 7-Inch Color LCD Display Module With Driver Board, 1024x600 Resolution, Optional Resistive Touch Screen And Capacitive Touch Screen With USB Interface Driver Board. In Order To Make It More Convenient For Customers To Use, We Redesigned The Driver Board To Integrate It With The Display Screen, Which Can Save More Space For Customers. Four Positioning Holes Make Installation More Convenient For Customers. All Materials Comply With Environmental Protection Requirements And RoHS Standards. This Module Is Widely Used In Vehicles, Security, Various Instruments, Smart Devices, Etc. Suitable For Raspberry Pi, Etc. When Used On Raspberry Pi, It Is Compatible With Raspbian, Ubuntu, WIN10 IOT And Other Operating Systems, And Supports Single-Touch. Desktop Computers Are Compatible With Windows 7/8/8.1/10 And Other Systems, And Support 5-Point Touch. All Materials Comply With Environmental Requirements RoHS Standards.
