Product type：Graphic LCD Module
Show contents：128x64
Outline size(mm) ：95.0x56.7x13.5
Size of View Window(mm)：65.6x38
Display size(mm) ：60.775x32.935
Point spacing(mm)：0.475x0.515
Product application：Instruments
Visual angle：6H
Backlight type or brightness：white
Connection PIN Number：FPC-9PIN
Interface mode：SPI
Special instructions：Anti-static ESD 8KV
Working temperature：-20~70℃
Power supply voltage：5.0V
Driver chip model：ST7565R

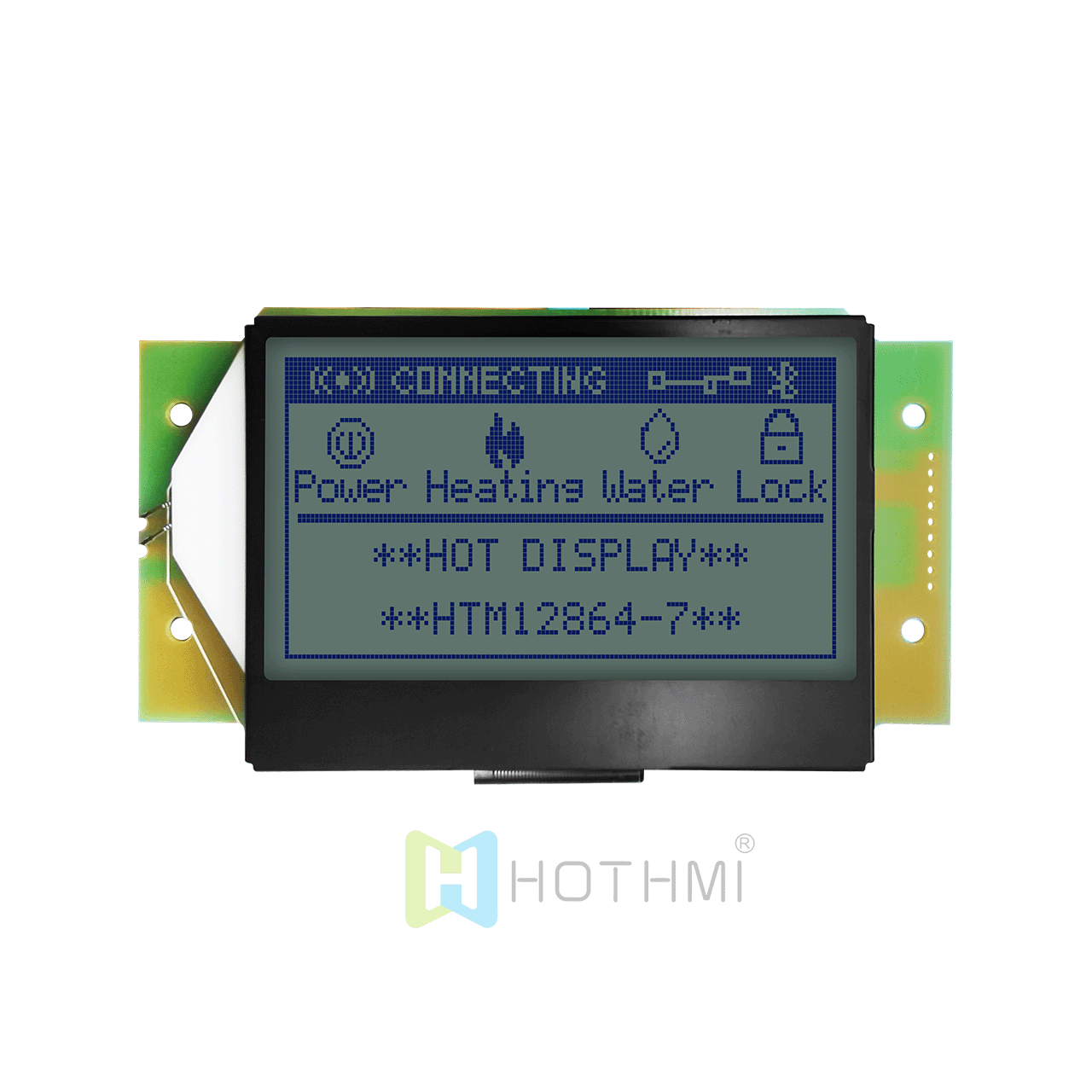

This HOT DISPLAY 128x64 graphic LCD module displays blue pixels on a gray background. This transflective LCD monitor is engineered to provide optimal visibility in a variety of lighting conditions in a variety of environments. In bright sunlight, the display uses its reflective layer to reflect ambient light back to the viewer, making the screen easy to read. In darker environments, the LCD has a powerful built-in backlight that provides high contrast and displays clear graphics to the viewer. This advanced display technology ensures that the display is always easy to read, regardless of lighting conditions.
This graphic LCD module is fully compatible with Arduino/C8051 and can be seamlessly connected with other electronic systems to achieve various applications. The HTM12864-7-11W-A5P model is designed to withstand harsh operating conditions and performs well when used in a temperature range of -20 to 70 degrees Celsius. The LCD has an optimal viewing angle of 6:00, operates on 5V, and is RoHS compliant.
