Product type：Character LCD Module
Show contents：16x2
Outline size(mm) ：100.0x38.0x13.0
Size of View Window(mm)：80.0x20.5
Display size(mm) ：76.37x16.02
Point spacing(mm)：0.83x0.98
Product application：Instruments
Visual angle：6H
Backlight type or brightness：RGB
Connection PIN Number：16PIN
Interface mode：MCU
Special instructions：Anti-static ESD 8KV
Working temperature：-20~70℃
Power supply voltage：5.0V
Driver chip model：ST7066U

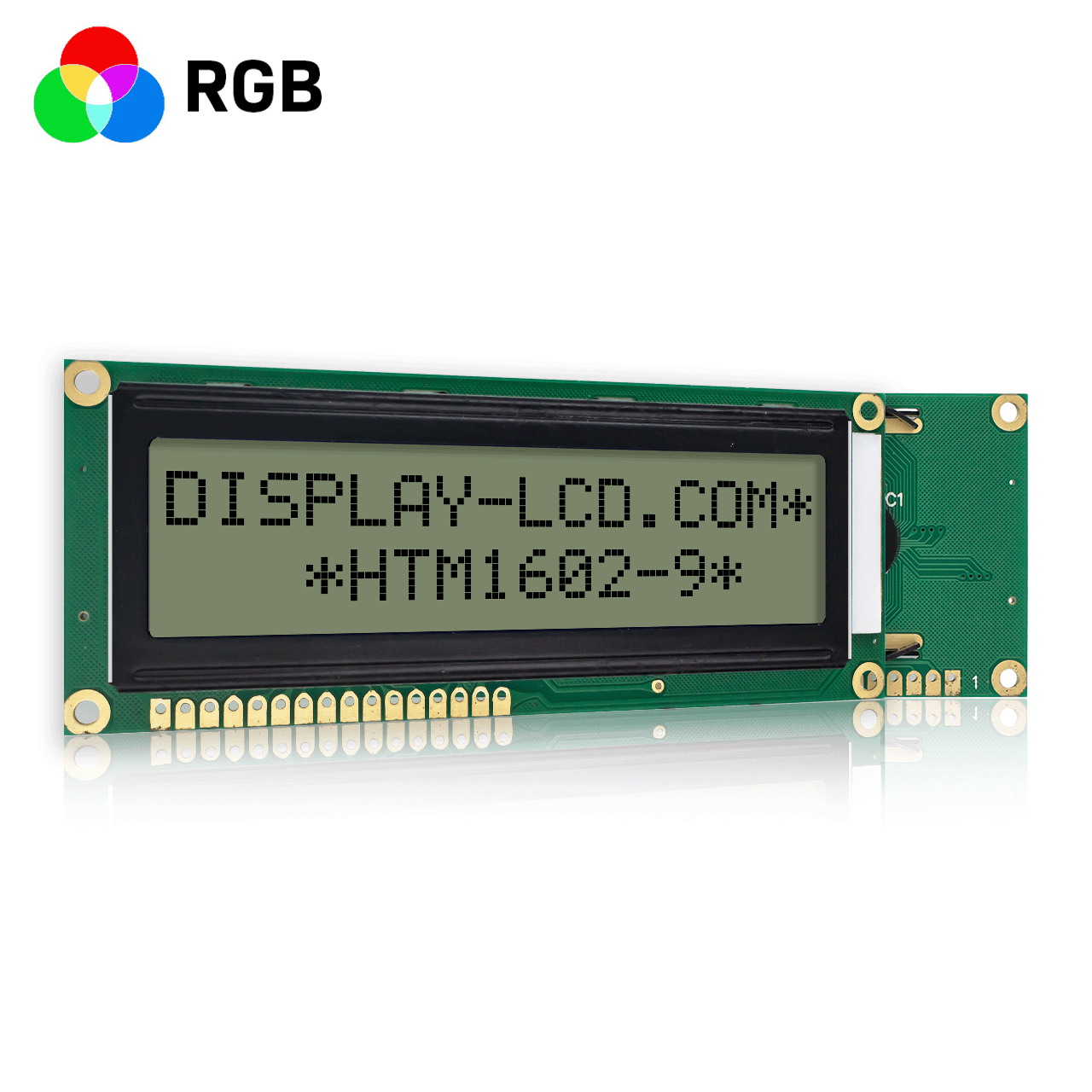

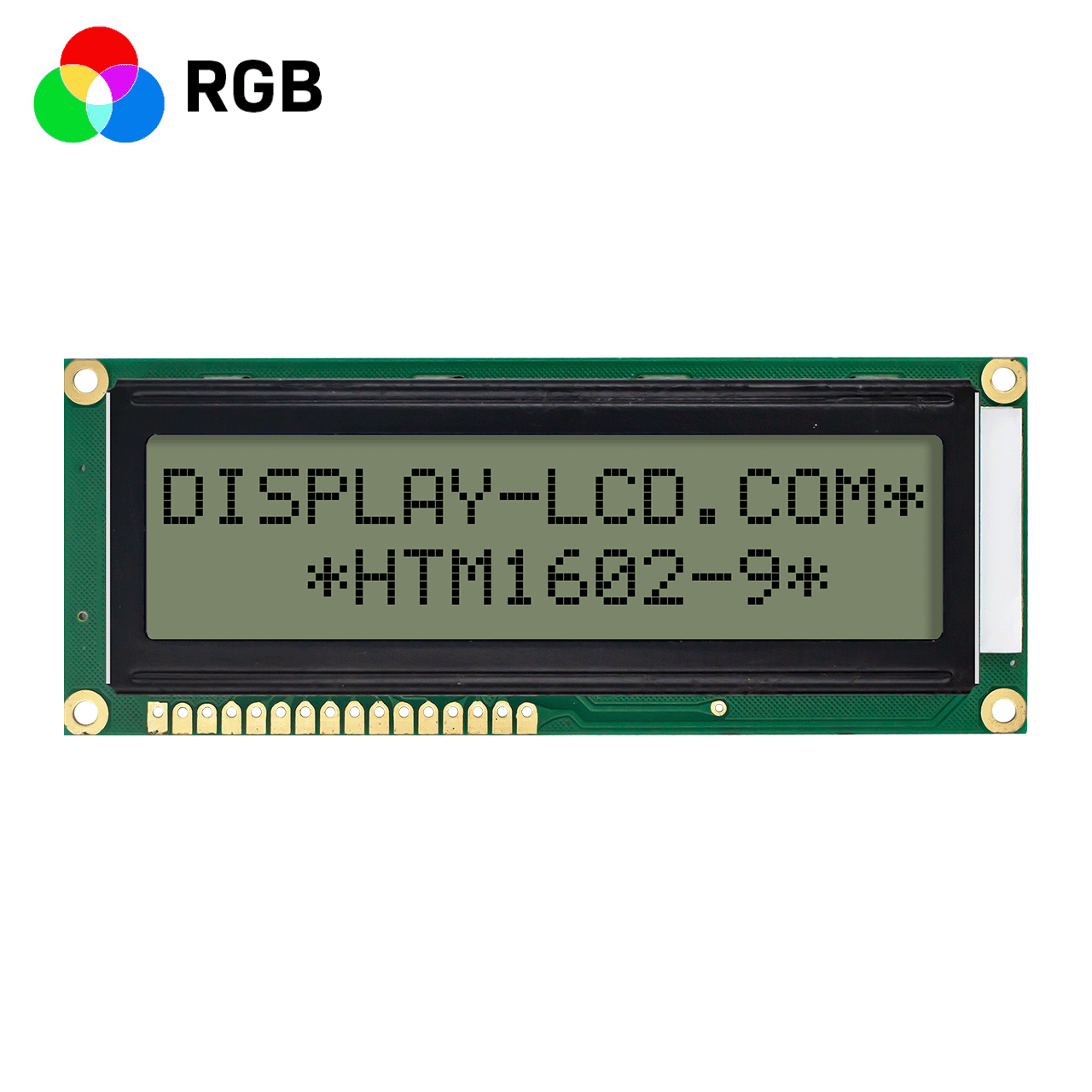

The HOTHMI 2x16 LCD display can display up to 32 characters, divided into two lines, each displaying 16 dark pixel characters on a light gray background. The RGB display screen has three built-in backlight colors in each display screen, allowing you to choose from red, green, or blue backlight colors. You can also mix the intensity of these colors to create new custom colors.
This reflective LCD display ensures excellent visibility in ambient or low light conditions through built-in LED backlighting. It has a wide operating temperature range of -20 to 70 degrees Celsius. The best view for this Arduino compatible HTM1602-9-35S-A5P monitor is 6:00. The monitor operates at a 5V power supply voltage and complies with RoHS standards.
